PVC T-70 Low Voltage Surface Raceway Base Fittings 10FT Off-White T70BIW10
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

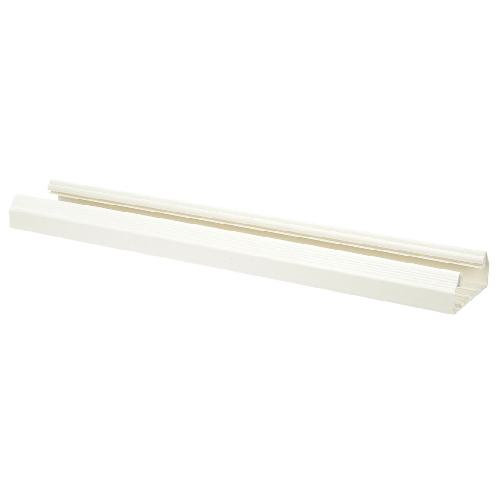

The T-70 raceway base provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-70 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and Off-White.
Also Known As :
Conduit Track Fittings, Cable Raceway Accessories, Fittings, Wire Channel Fittings, Cable Management Fittings, Surface Duct Fittings
Specification :
| Product Type | Surface Raceway Channel |
| Fitting Type | Channel |
| Sub Brand | Pan-Way |
| Color | Off-White |
| Material | PVC |
| Raceway Type | Low Voltage |
| Mount Method | Screw-On |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Overall Length (ft.) | 10 |
| Overall Length (m) | 3 |
| Overall Width (In.) | 4.07 |
| Overall Width (mm) | 103.4 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center ™ Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. |
Features :
• T-70 raceway base, 10 ft. length. Overall raceway dimension (T-70 base and cover): 4.07 x 1.77 (103.3mm x 45.0mm) Supplied with pre-punched mounting holes. Compatible with Pan-Way Classic Style snap-on faceplates or NEMA standard 70mm faceplates. Transitions to Panduit T-45 and LD profile raceway.
Download PDF Spec Sheet
