PVC T-45 Low Voltage Surface Raceway Faceplate Off-White T45WCIW
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

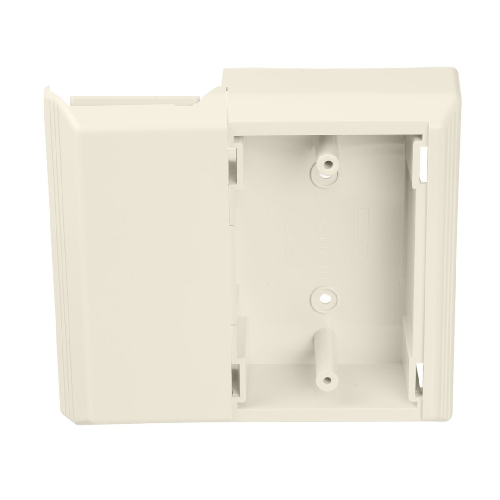

The T-45 Offset bracket is designed to accept snap-on or screw-on faceplates. It is Off-White.
Also Known As :
Conduit Track Fittings, Cable Raceway Accessories, Fittings, Wire Channel Fittings, Cable Management Fittings, Surface Duct Fittings
Specification :
| Product Type | Faceplate |
| Fitting Type | Snap-On Box |
| Sub Brand | Pan-Way |
| Color | Off-White |
| Material | PVC |
| Raceway Type | Low Voltage |
| Mount Method | Screw-On |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Overall Length (ft.) | 0.48 |
| Overall Length (m) | 0.2 |
| Overall Width (In.) | 5.17 |
| Overall Width (mm) | 131.3 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
| Part Features | T-45 offset box allows for the mounting of any standard electrical or communication outlet offset from the raceway channel. Box accepts Pan-Way single gang screw-on faceplates or any NEMA standard single gang screw-on faceplates. |
Download PDF Spec Sheet
