Product Information

Specification

Large Load Capacity:

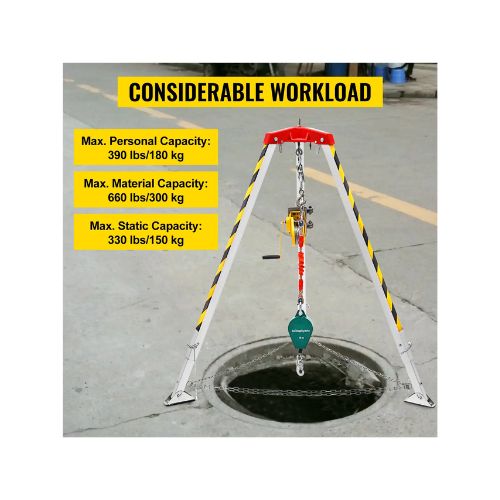

Supports a maximum personnel capacity of 390 lbs/180 kg, a maximum material capacity of 660 lbs/300 kg, and a maximum vertical static capacity of 330 lbs/150 kg. The manual handle force is ≤500 N, providing reliable lifting and lowering performance.

Durable Aluminum Alloy Construction:

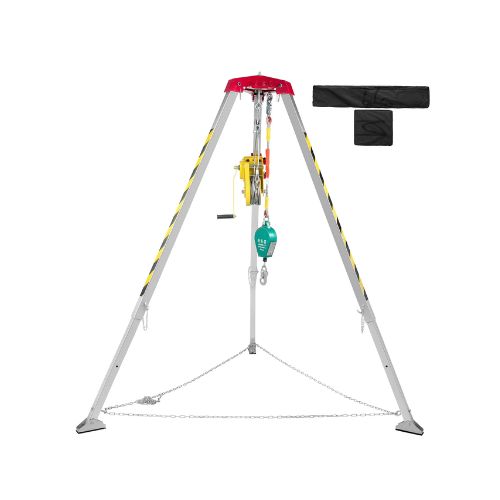

Constructed with premium iron and high-quality aluminum alloy, this confined space rescue tripod features a die-cast aluminum alloy top plate for enhanced strength and durability. Yellow and black reflective stickers improve visibility in low-light conditions.

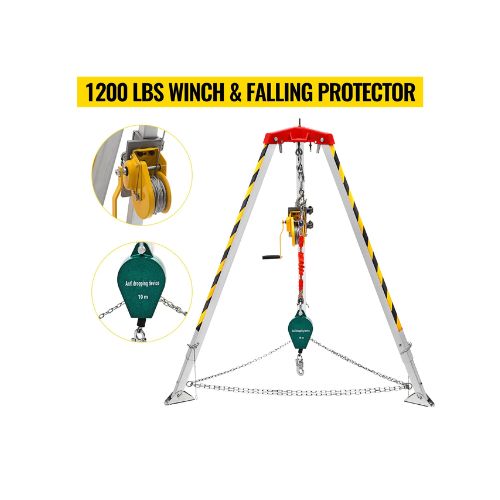

Self-Locking Winch System:

Equipped with a 0.16 in/4 mm diameter cable and a 99 ft/30 m cable length, the 1,200 lbs winch provides extended reach for confined space rescue operations. The self-locking system supports controlled raising and lowering, while the fall protector and durable safety hook provide added security during use.

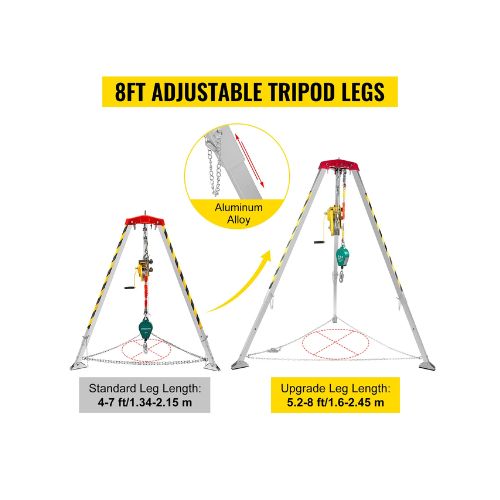

Adjustable legs up to 8 ft:

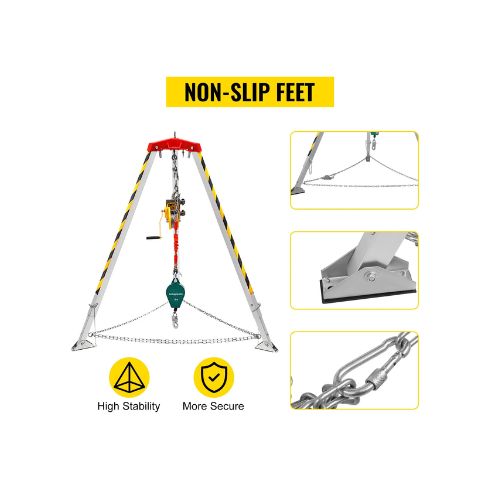

The tripod legs can be adjusted from 5.2 ft to 8 ft to accommodate different working heights and confined space requirements. Three angle-adjustable feet feature rubberized, anti-slip pads for improved stability, while the connecting protection chains help keep the tripod securely positioned during operation.

Versatile Confined Space Applications:

Designed for confined space entry, lifting, lowering, and rescue operations. Suitable for applications such as wells, sewers, underground pipelines, tunnels, and other confined work areas requiring reliable fall protection and rescue equipment.
