POE Injector Omada Adapter TPL-POE150S

Product Information

Specification

Description

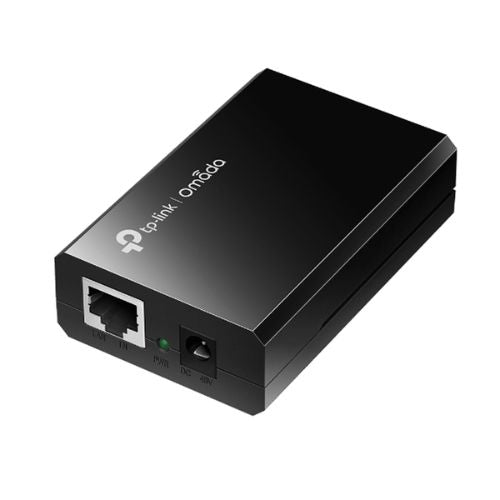

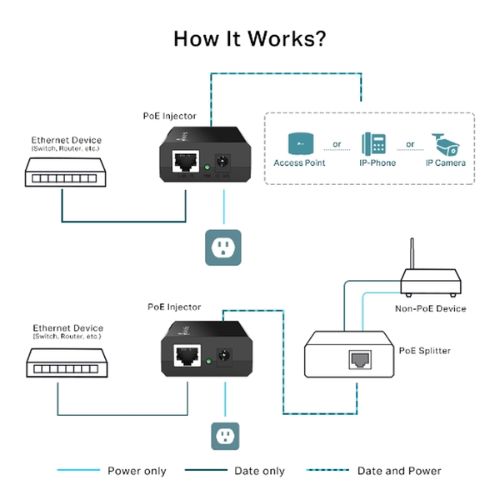

The POE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard and can work with all IEEE 802.3af POE compliant PDs (Powered Devices) or POE Receiver Adapters, such as TP-LINK’s POE10R or other equivalent product, to expand your network to where there are no power lines or outlets, where you wish to fix devices such as AP, IP cameras, or IP phones.

Specification

Model: POE150S
Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af
Dimensions ( W x D x H ): 80.8 x 54 x 24mm
Power: Input: External 48VDC power adapter, Output: Auto-determine the necessary Power requirements (max. 15.4W)
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Humidity: 5%~90%RH non-condensing

Features

• Complies with IEEE802.3af standard
• Cost-saving, no power cabling for Ethernet network device
• Delivers power and data over the single cable up to 100 meters
• Advanced Auto-Sensing Algorithm enables providing power with 802.3af PD
• Supports power classification; Auto-determine the necessary power requirements
• High safety with Short Circuit Protection
• Plug & Play installation requires no configuration
• External 48VDC power supply
