Product Information
Specification
| Copper Conductor Size | 750 kcmil |
| Color Code | Black |
| Burndy Die Index No. | 24 |
| Wire Strip Length | 1-3/4" |
| Sub-Category | Compression Cable Lug |
| Part Number | BLU-075S-FL |

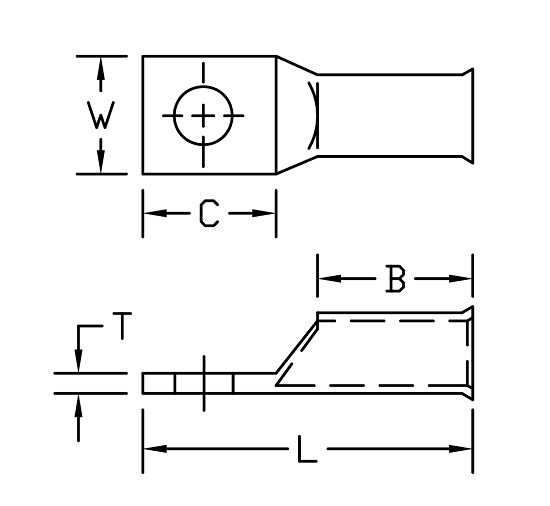

PRODUCT DIMENSIONS :-
| W (in.) | 1.91 |
| C (in.) | 1.75 |
| T (in.) | 0.27 |
| B (in.) | 1.63 |
| L (in.) | 4.31 |
| Stud Hole Size | 5/8" |
PENN-UNION BLU-075S-FL 646-MCM FLARED LUG
Description :-
Seamless Tin Plated Copper Material; Black Color; 4 Inch Overall Length; 1-5/8 Inch Barrel Length; Copper Conductor Material; UL Approval; 35 kV Voltage Rating; 750 MCM Conductor Size; 5/8 Inch Stud Size; 1-7/16 Inch L X 1-29/32 Inch W X 17/64 Inch Thk Pad Size; 1 Pad Hole(S); Belled Barrel Type; PENN-CRIMPS[R] Brand; With Inspection Window; BLU Model
Key Features :-
- ⋆Suitable for use with Class B, C, I, K, H, G, M and DLO conductors
- ⋆Manufactured from high conductivity seamless copper tubing
- ⋆Tin-plated to inhibit corrosion
- ⋆Inspection window ensures full cable insertion
- ⋆Flared barrel entry provides easy cable insertion for fine stranded flexible cables and minimizes strain during flexing and movement
- ⋆Color coded barrel is marked with die index number
- ⋆Suitable for voltages up to 35 KV
Download PDF Spec Sheet
