Passive Optical Network Power Meter for XGSPON/XGPON/BPON/EPON/GPON XGS-1577

Product Information

Specification

Description:

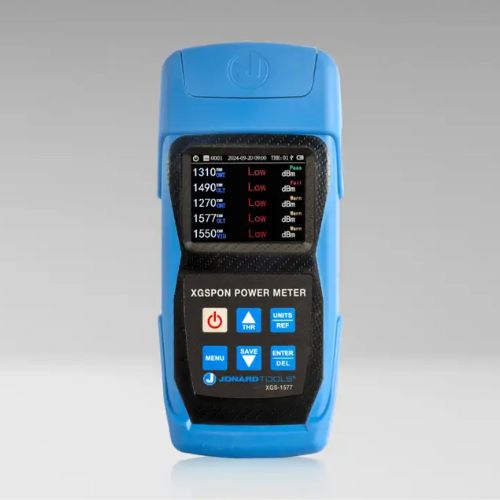

The XGS-1577 XGSPON Meter is a high-performance testing instrument designed to accurately and simultaneously measure upstream and downstream PON wavelengths in optical networks. It supports upstream wavelengths of 1270 nm and 1310 nm, as well as downstream wavelengths of 1490 nm, 1550 nm, and 1577 nm, making it suitable for EPON, BPON, GPON, XG-PON, and XGS-PON installation and maintenance tasks. Featuring a bright color LCD screen and an intuitive user interface, the meter enables easy navigation and clear data viewing. Additionally, it comes equipped with both SC/APC and FC/APC adapters to ensure broad compatibility across optical network systems.

Features:

⦿ Supports simultaneous upstream wavelength testing at 1270/1310 nm and downstream measurements at 1490/1550/1577 nm

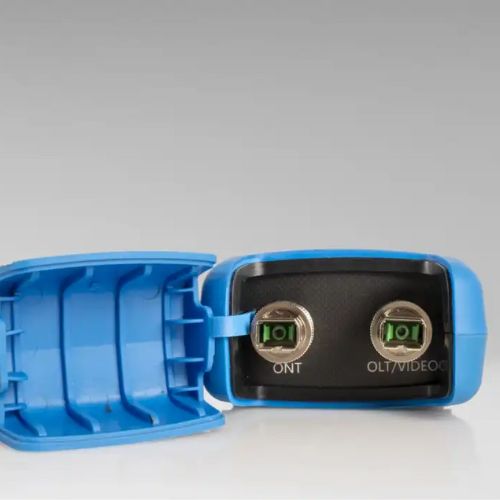

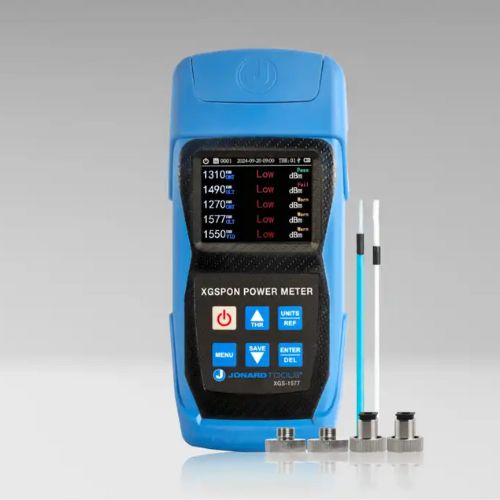

⦿ Supplied with SC/APC and FC/APC adapters, compatible with the most widely deployed PON networks

⦿ Features a color LCD display with adjustable brightness for clear, easy readability

⦿ Stores up to 1,000 test results, with data export for PC analysis

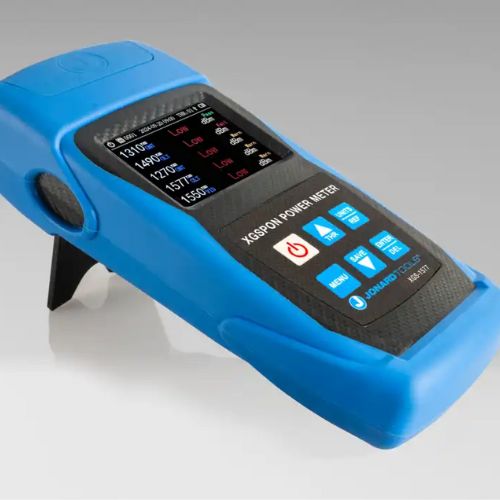

⦿ Integrated kickstand for a comfortable, ergonomic viewing angle

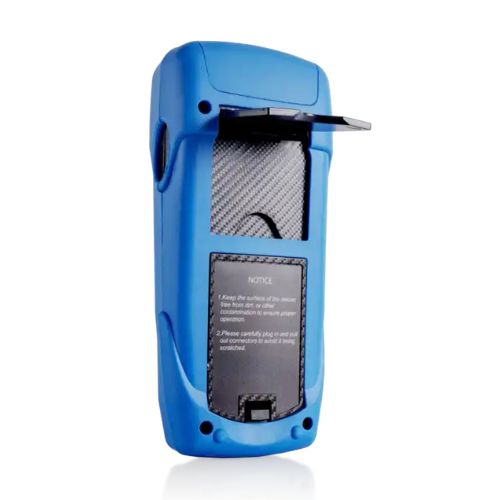

⦿ Battery-powered (3 × AA) with up to 90 hours of operation, optimized for field applications
