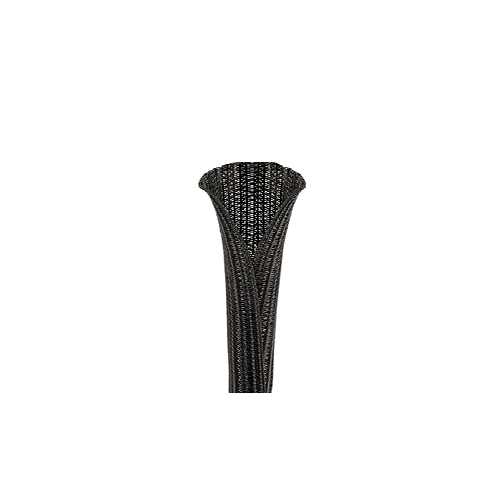

Pan-Wrap Braided Sleeving Black SE100PSFR-CR0
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About ;
Pan-Wrap Braided Expandable Sleeving, 1" (25.4 mm) diameter, provides continuous Abrasion Resistance for Wires, Cables and Tubing. The highly flexible open Weave will not trap heat or humidity, black with white tracer, Flame retardant Polyethylene Terephthalate, 100 ft. per reel.
Specification :
| Sub Brand | Pan-Wrap |
| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loadin |
| Material | PET |
| Flammability Rating | UL 1441 VW-1 |
| Color | Black |
| Resistance Properties | Flame-Retardant |
| Standards Met | CSA Certified, UL 1441 VW-1 Flammability: Halogen Free, RoHS, UL Recognized E116868, EN 45545-2 Rated |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -70 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Product Type | Braided Sleeving |
Features :
• Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity
Download PDF Spec Sheet
