Pan-Term Loose Piece Terminal Pin P10-P55-D (Pack of 500)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Pin Terminal |
| Standards Met | cULus 486A |
| Sub Brand | Pan-Term® |
| Maximum Voltage (V) | 2 |
| Base Material | Copper |
| Insulation Material | Non-Insulated |
| Pin Length (In.) | 0.55 |
| Pin Length (mm) | 14 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Overall Length (mm) | 20.1 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| For Use With | CT-100, CT-200, CT-1570, CT-2300 (CD-570), CT-2500 (CT-2570CH), UP14ZLW (CD-570) |
| Part Features | Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection Internal barrel serrations assure good wire contact and maximum tensile strength Barrel of terminal internally beveled to provide quick and easy wire insertion |
| Part No. | P10-P55-D |

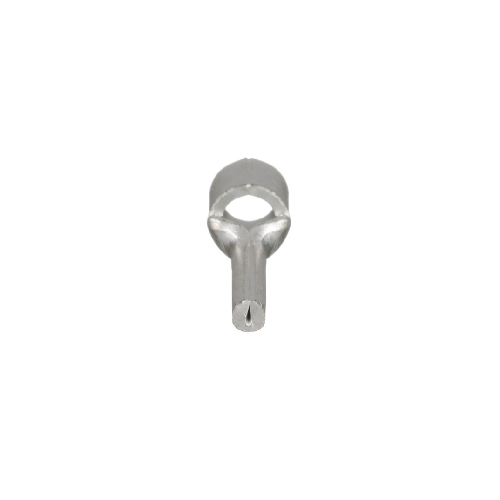

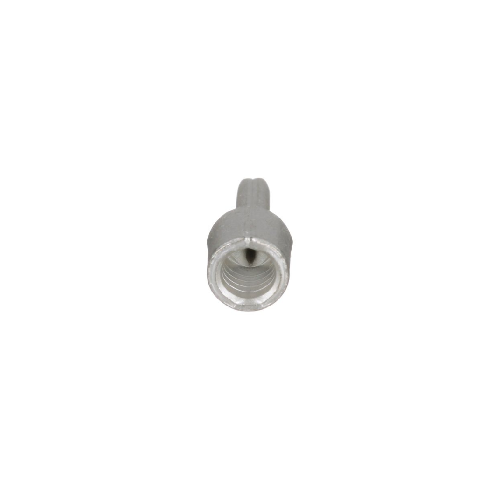

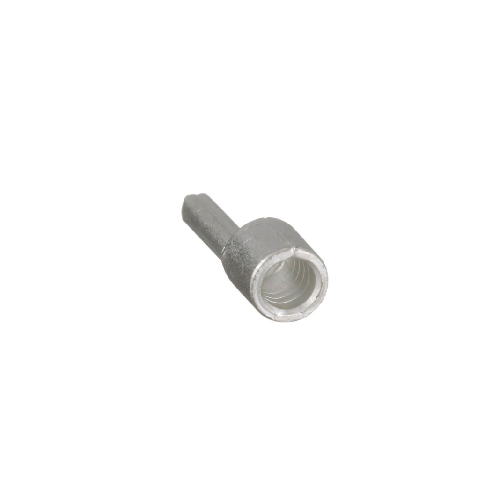

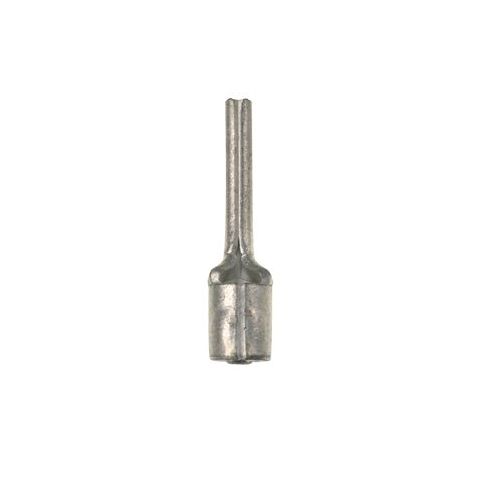

Pan-Term Loose Piece Terminal Pin P10-P55-D
Description:
Panduit P10-P55-D Pin Terminal
