Pan-Lug Tin Plt Copper Comp Lug 10 Two 0.25 Stud PK50 LCD10-14AF-L (Pack of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Maximum Copper Conductor Size (AWG) | 10 |
| Minimum Copper Conductor Size (AWG) | 14 |
| Product Type | Copper Compression Connectors - Lugs |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 10 |
| Sub Brand | Pan-Lug™ |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Angle | 90° |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 1.56 |
| Overall Length (mm) | 39.6 |
| Finish/Coating | Tin-Plating |
| Standards Met | CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Part No | LCD10-14AF-L |

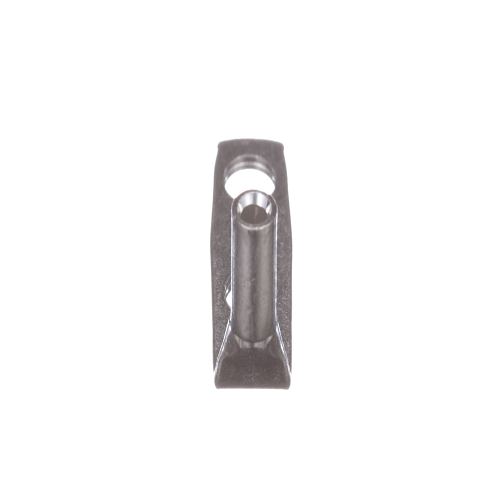

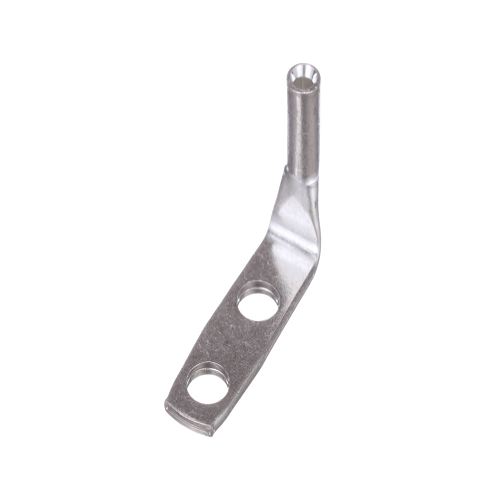

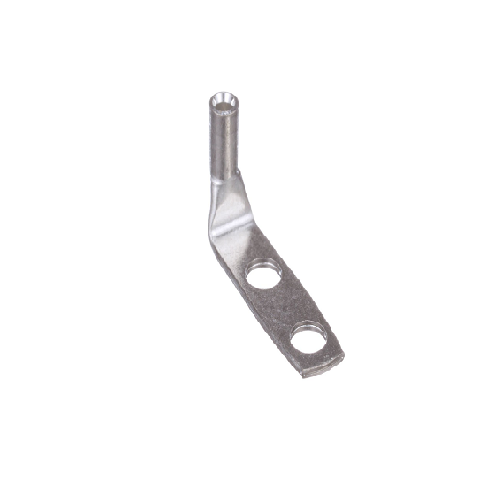

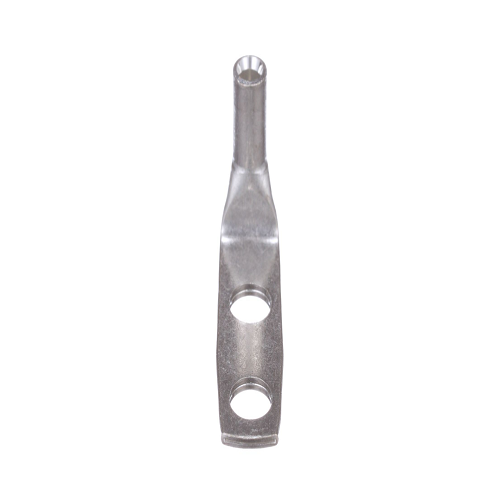

Pan-Lug Tin Plt Copper Comp Lug 10 Two 0.25 Stud PK50 LCD10-14AF-L
DESCRIPTION :
Two-hole, standard barrel lug with window, #10 AWG wire, 1/4 stud hole, .63 hole spacing, 90° angle tongue.
FEATURES :
⦿ Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
