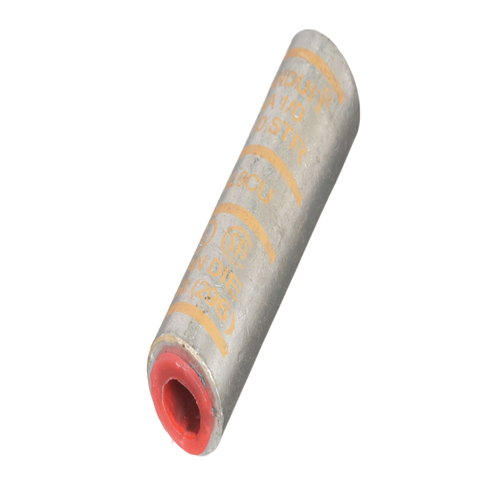

Pan-Lug Aluminum Compression Splices SA1/0-L
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Aluminum Compression Splice, Tin-Plated to inhibit corrosion, high conductivity thick wall aluminum, Factory pre-filled joint compound and sealed with easy pull-out end plug to inhibit corrosion, Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection, Internal solid stop prevents over-insertion of conductor, UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with Panduit and specified competitor crimping tools and dies.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 1/0 |
| Aluminum Conductor Size (AWG) | 1/0 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Aluminum |
| Standards Met | UL LISTED & CSA CERTIFIED TEMPERATURE RATED 90 C (AL9CU) |
| Finish/Coating | Tin-Plated |
| Color Code | Tan |
| Burndy Die Index Number | 296 |
| Panduit Die Index Number | P50 |
| T & B Die Index Number | 50 |
| Overall Length (In.) | 2.12 |
| Overall Length (mm) | 53.8 |
| Wire Strip Length (In.) | 1 |
| UL Temperature Rating (°C) | 90 |
