OS2 9/125, 144 Fiber Single Type A Mode High-Density MPO/MTP to LC Cassette Module FB43-1308-144FSM
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | MPO/MTP to LC Fiber Cassette Module |
| Fiber Mode | Single Mode OS2 |
| Fiber Type | 9/125μm |
| Polarity | Type A |
| MPO/MTP Connections | 12 MPO/MTP® Ports |
| LC Connections | 72 Duplex LC Ports |
| Fiber Capacity | 144 Fibers |
| Connector Type | LC Duplex / MPO/MTP® |
| MPO/MTP Polish Type | APC (Angled Physical Contact) |
| Rack Mount Size | 19-inch Rack Compatible |
| Rack Height | 1U |
| Application | High-Density Data Centers, Telecom Networks, Enterprise Fiber Systems |

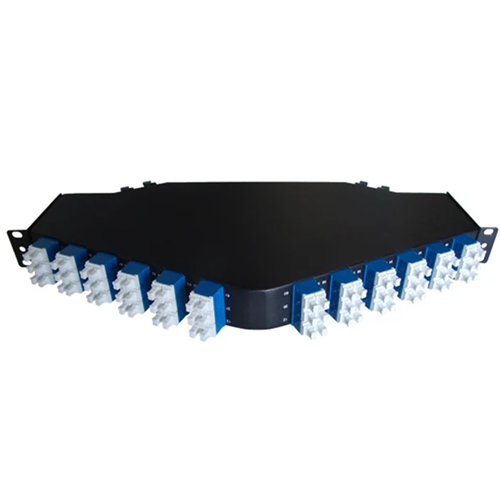

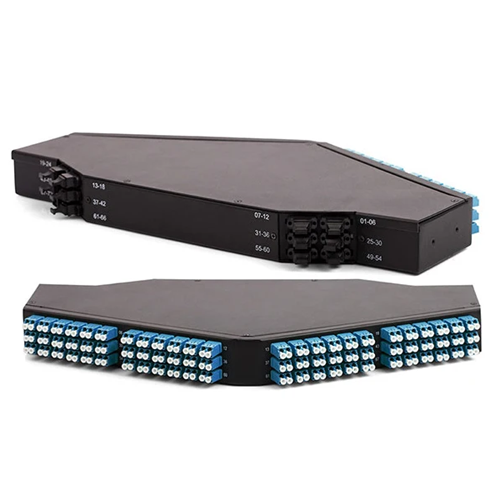

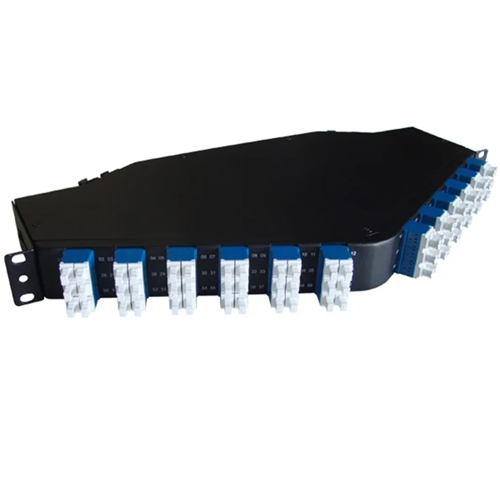

The High-Density MPO/MTP to LC Cassette Module is a pre-terminated fiber optic solution designed for high-density data center and enterprise network applications. This rack-mountable cassette converts 12 MPO/MTP® connections into 72 duplex LC connections, providing connectivity for 144 single-mode OS2 fibers within a compact 1U rack space.
Featuring Type A polarity and APC polished MPO/MTP® connectors, this cassette ensures reliable, low-loss optical performance and accurate fiber alignment. The angled front panel improves cable management and accessibility, while the plug-and-play design allows for quick installation and simplified fiber deployment.
Features :
• Supports 144-fiber high-density connectivity in 1U rack space
• Provides easy transition from MPO/MTP® trunk cables to LC duplex connections
• Pre-terminated design reduces installation time and labor costs
• Ensures reliable performance with APC polished MPO/MTP® connectors
• Compatible with high-speed fiber optic network applications
• Ideal for data centers, server rooms, and backbone fiber deployments
