Networked RFID Electronic Lock Kit CPI 14667-001
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Swing handle | 5.9"H x 1"W (150 mm x 25 mm) |
| Door Sensor |
(3) surface-mount magnetic sensors Loop type: closed |
| Material and Finish | Glass-filled nylon, PC/ABS (UL94-V0) |
| Operating Conditions | Temperature: 32°F – 149°F (0°C – 65°C) at Input Power Rating (kW) Relative Humidity: 5% – 95%, non-condensing Elevation: 0 – 10,000 feet (0 – 3,000 meters) |
| Storage/Non-operating Conditions: |
Temperature: -13°F – 149°F (-25°C – 65°C) Relative Humidity: 5% – 95%, non-condensing Elevation: 0 – 50,000 feet (0 – 15,000 m) |
| Integrated RFID Card Reader | Separate lock options recognize existing employee 125 kHz or 13.56 MHz RFID cards, including HID, iClass, MIFARE, and DESFire technologies. |
| Future-proof Design | Modular reader allows the use of the same swing handle as card technologies evolve. |
| Flexible Management | Multiple methods of integration: through eConnect PDUs, networked controller, or building security access control system. |
| Regulatory Compliance | Allows audit trail to be maintained for every access attempt within DCIM software or access control systems in order to comply with HIPAA, PCI DSS, GDPR, FISMA, Saas SOC 2, HITECH, and more. |
| Quick Deployment | Locks can be factory-preinstalled into CPI TeraFrame and GlobalFrame cabinets |
| eConnect Integration |
• Included with P/N 14666-001, eConnect RFID Electronic Lock Kit ONLY • Connects to AUX ports on eConnect PDUs, and uses eConnect PDU network connection • Must be used with eConnect Monitored, Monitored Pro, Switched and Switched Pro PDUs (P/N EX – XXXX) • Requires eConnect Controller 4 or later with 12 VDC output • Requires Firmware version 5.0.678 or higher |
| Remote Access Control | Ability to remotely open/close doors allows administrators to provide access to contractors without badges |
| Part Number | 14667-001 |
Description:
Networked RFID Electronic Lock Kit; For GlobalFrame and TeraFrame cabinet systems; Includes controller module with Gigabit Ethernet port and built-in web interface; Front and rear door locks; 3 Door switches; 2 Wiring harnesses; 2 Mechanical override keys.
Product Overview:

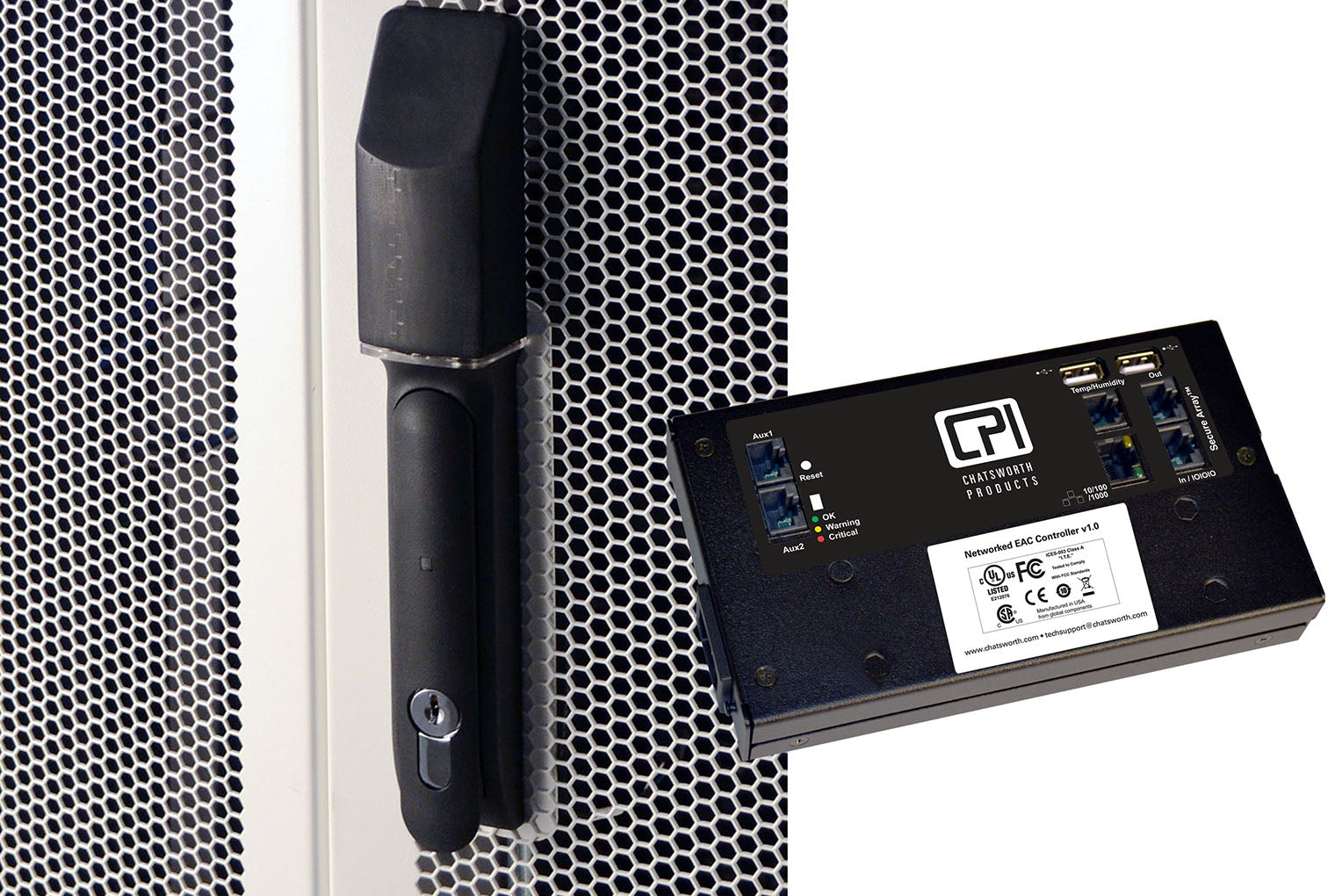

The Electronic Lock Kit solution can be preinstalled in CPI Cabinets and features swing handles with integrated dual-frequency card reader technology. Audit trail capability allows for enhanced regulatory compliance.
‣ Integrated RFID Card Reader – Separate lock options recognize existing employee 125 kHz or 13.56 MHz RFID cards, including HID, iClass®, MIFARE®, and DESFire technologies.
‣ Future-proof Design – Modular reader allows the use of the same swing handle as card technologies evolve.
‣ Flexible Management – Multiple methods of integration: through eConnect PDUs, networked controllers, or building security access control system.
‣ Regulatory Compliance – Allows audit trail to be maintained for every access attempt within DCIM software or access control systems in order to comply with HIPAA, PCI DSS, GDPR, FISMA, Saas SOC 2®, HITECH, and more.
‣ eConnect Integration – Eliminates the need for a separate IP address or a separate source of power for the lock. Saves significant deployment costs normally associated with wiring the locks to security panels.
‣ Remote Access Control – The ability to remotely open/close doors allows administrators to provide access to contractors without badges.
‣ Centralized Authentication – Ability to use the permissions set within the RADIUS server to provide higher levels of security.
Kit Overview:
Networked RFID Electronic Lock Kit
Kit includes:

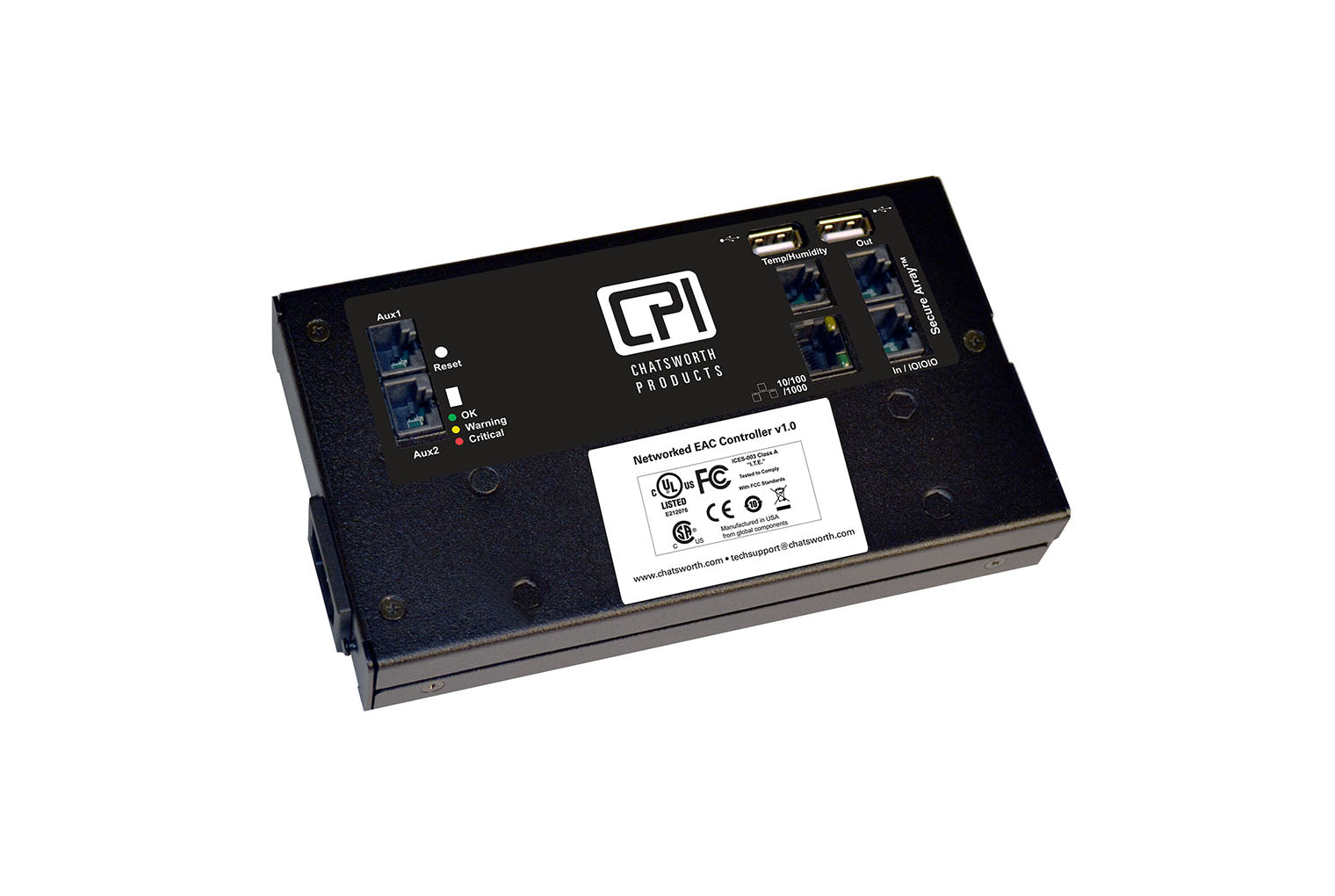

‣ Controller module with Gigabit Ethernet port & built-in web interface
‣ Secure Array IP Consolidation for up to 16 cabinets
‣ Capability to integrate with USB Temperature and Humidity Sensor
‣ Front and rear swing handles
⁃ 3 door sensors (front and rear doors)
⁃ 2 wiring harnesses (for front and rear connection)
⁃ 2 mechanical override keys
Download PDF Spec Sheet
