MVC860-C5-000 Teams Rooms System Kit YEA-MVC860-C5-000
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
The MVC860 is designed for medium and large conference rooms, featuring the MCore Pro MINI-PC, MTouch Plus touch panel, and UVC86 4K PTZ camera. The MCore Pro offers a sleek design, three HDMI ports, and EDID for flexible deployments. The 11.6-inch MTouch Plus supports multi-panel meeting controls and third-party screen sharing. With the RoomSensor, it enables stable wake-up and room environment detection. The UVC86 camera delivers 4K video, 12x optical zoom, and intelligent tracking features like auto-frame, speaker, and presenter tracking for an enhanced meeting experience. Compatible with wired or wireless microphones for versatile setup options.
Also Known as:
MVC860-C5-000 Kit, Meeting Room Kits, Conference Room Kit, Windows Meeting Room Kit.
Specifications:
| Video Conferencing | BYOD, Collaboration Bars, Microsoft Teams |
| Video Room Size | Large, Medium |

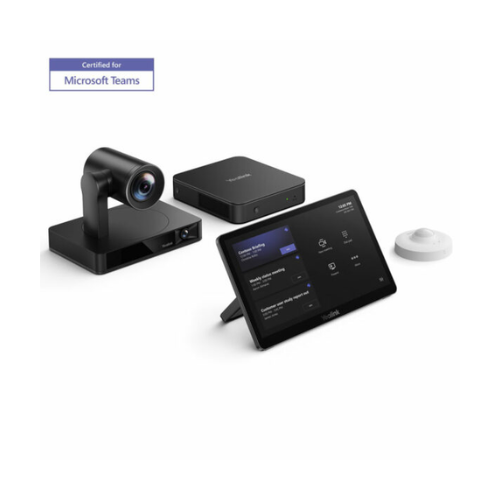

| Package Contents | MCore Pro, Gen-3 Mini-PC MTouch Plus, Gen-3 touch panel UVC86 USB PTZ camera RoomSensor |
| Windows Version | 11 IoT Enterprise X64 |
| Intel | Core i5 11th Gen |
| Weight | 20.75 lbs |
| Dimensions | 20 × 16 × 12 in |
| Part Number | YEA-MVC860-C5-000 |
Kit Includes:
| MCore Pro, Gen-3 Mini-PC | UVC86 USB PTZ Camera | MTouch Plus | RoomSensor |
|

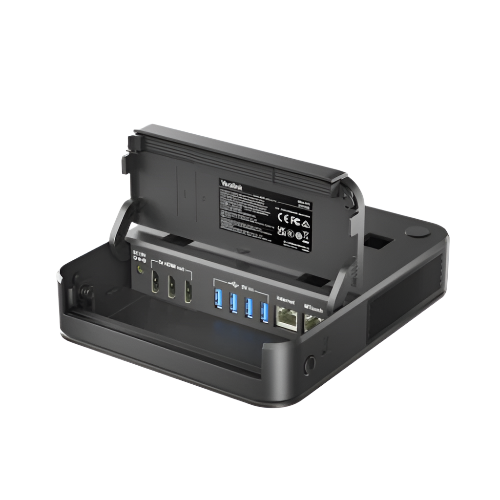

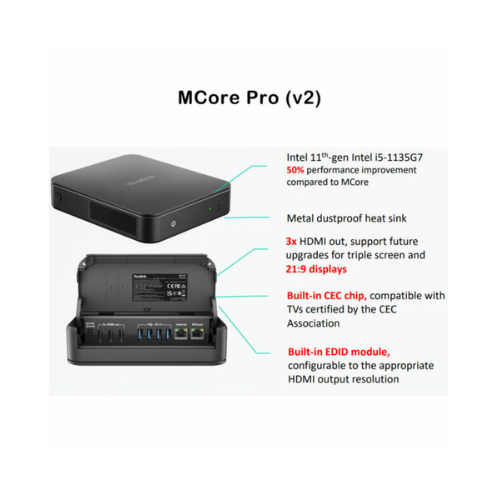

• 11th Gen Intel Core i5 • Memory: 8 GB (2 x 4GB) • Storage: 128 GB SSD • 3x HDMI video output with CEC supported • TPM2.0 • Kernel DMA • EDID • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2 • 4 x USB 3.0 Type-A • 1 x 10/100/1000M Ethernet port • 1 x Power port • 1 x Security lock slot, Integrated cable management |

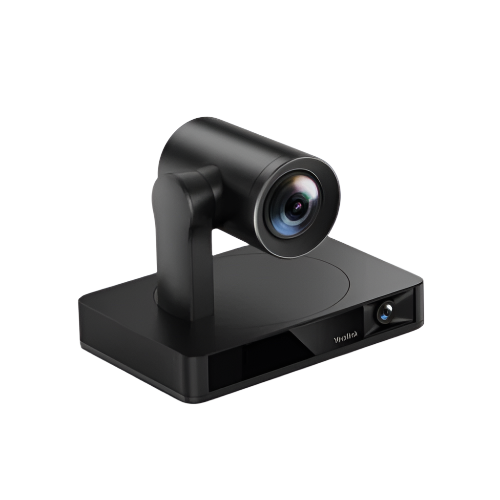

• 4K Sensor • 20.4 × HD zoom (12x optical, 1.7x digital) • Angle of view: • 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) • Auto-framing • Speaker tracking • Presenter tracking, support area trigger and gesture control • Multi-focus • Picture-in-picture • Up to 9 preset positions can be set • Horizontal rotation: 200° • Vertical rotation: 130° • 1 x HDMI output • 1 x Yealink microphone port(RJ-45) • 1 x USB 3.0 Type-B port • 1 x USB 2.0 Type-A Port • 1 x Power Port • 1 x Security Lock • 1 x Reset Hole |

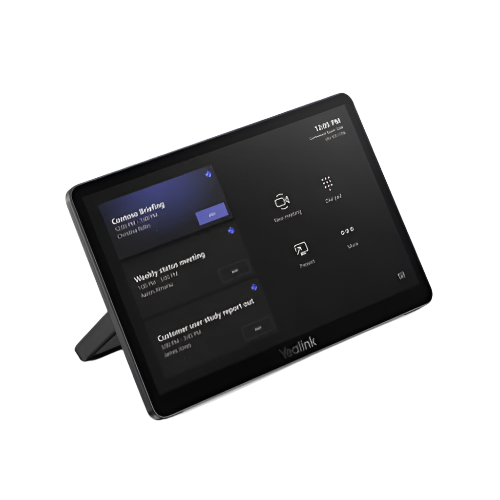

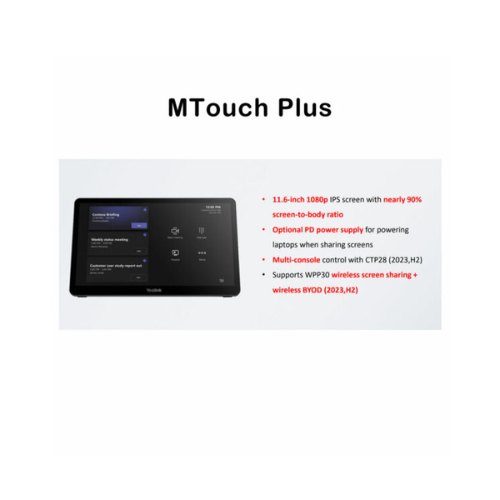

• 11.6-inch narrow bezel IPS display 1920 x 1080 video resolution • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) • Support wired and wireless (with WPP30) content sharing • Support multi-screen control* • Support third-party screen sharing* • Support external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, wall-mounted deployment *This feature will be supported in future versions |

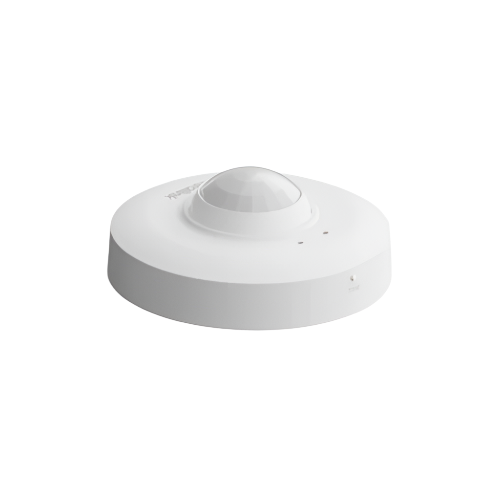

• Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% • Power: Battery powered |
Features:
• One Cable Technology
• Multi-Screen Control
• Device Management
• Speaker Tracking
• Multi-Focus
• Presenter Tracking
• Third-Party DSP
• Teams Certified
Download PDF Spec Sheet
