MVC840-C5-000 Microsoft Teams Rooms System for Meeting YEA-MVC840-C5-000

Product Information

Specification

About:

The MVC840-C5-000 is a cutting-edge solution designed for medium and large conference rooms, featuring the next-generation MCore Pro MINI-PC, the 11.6-inch MTouch Plus touch panel, and the 4K PTZ UVC84 camera. The MCore Pro seamlessly blends aesthetics with functionality, supporting 5K 21:9 displays, offering three HDMI ports with EDID compatibility, and ensuring flexible, reliable deployment. The MTouch Plus touch panel, with its ultra-large, narrow frame design, enables multi-panel control for synchronized meeting operations, providing complete meeting management. It also supports third-party screen sharing and wireless BYOD connections. Enhanced by the RoomSensor, the MVC840 delivers a stable wake-up experience and real-time conference room environment detection, making it an advanced and versatile choice for modern meeting spaces.

Also Known as:

Meeting Room Systems, Meeting Room Kit, Conference Room Kit, Conference Room System.

Specifications:

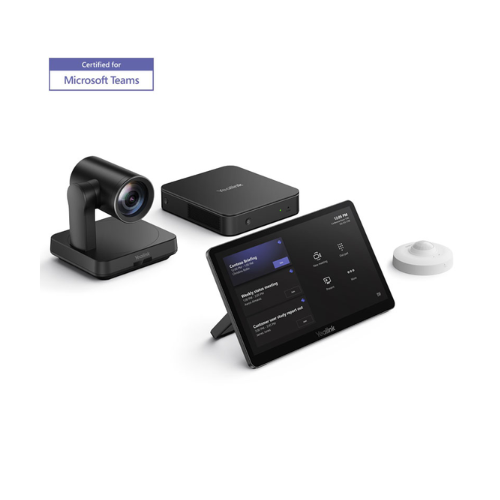

Box Contents:

• MCore Pro, Gen-3 Mini-PC
• MTouch Plus, Gen-3 Touch Panel
• UVC84 USB PTZ Camera
• RoomSensor, Meeting Room Sensor

MCORE PRO GEN-3:

• 11th Gen Intel Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management

MTOUCH PLUS:

• 11.6-inch narrow bezel IPS display
• 1920 x 1080 video resolution
• Adjustable stand (50° ~ 180°)
• Support wired and wireless (with WPP30) content sharing
• Support multi-screen control
• Support third-party screen sharing
• Support wireless BYOD
• Support external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, wall-mounted deployment

UVC84 USB PTZ Camera:

• 4K Sensor
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Room Sensor:

• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
• Power: Battery powered
