MVC400-C4-000 Microsoft Teams Rooms System for Video Conferencing YEA-MVC400-C4-000

Product Information

Specification

About:

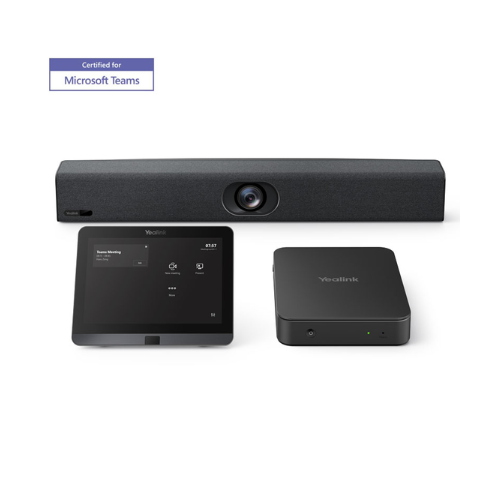

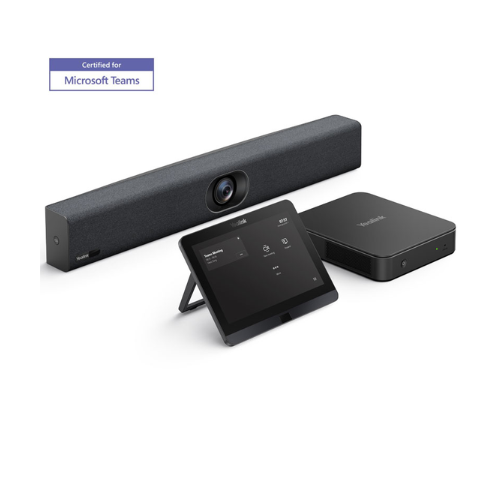

The new MVC400-C4-000 is ideal for small meeting rooms, offering easy deployment with the MCore Pro MINI-PC, MTouch E2 touch panel, and UVC40 USB Video Bar. The MCore Pro features a sleek design, three HDMI ports, and EDID support for flexible setups. The UVC40 delivers exceptional audio-visual performance with an 8 MEMS microphone array, 133° field of view, and AI features like detection, sound localization, and speaker tracking, ensuring high-quality, full-duplex calls.

Also Known as:

Small Room Conference Kit, Meeting Room System Kit, Teams Video Conference Kit, MVC400 Conference Kit, Huddle Video Collaboration Kit.

Specifications:

Features:

• Easy Deployment
• Auto Framing
• Speaker Tracking
• Electric Lens Cap
• Wireless Content Sharing
• Device Management

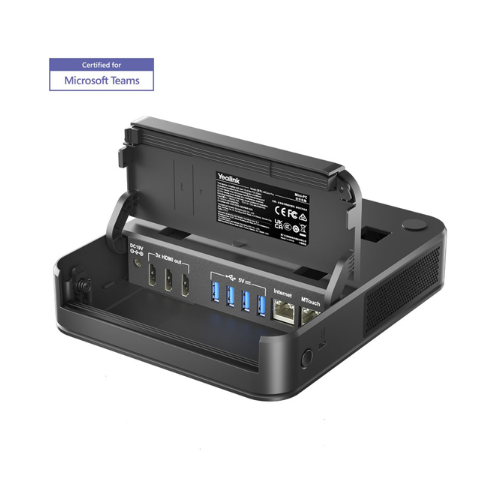

MCORE PRO GEN-3:

‣ 11th Gen Intel Core i5
‣ Memory: 8 GB (2 x 4GB)
‣ Storage: 128 GB SSD
‣ 3x HDMI video output with CEC supported
‣ TPM2.0
‣ Kernel DMA
‣ EDID
‣ Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
‣ Bluetooth: BT 5.2
‣ 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
‣ 4 x USB 3.0 Type-A
‣ 1 x 10/100/1000M Ethernet port
‣ 1 x Power port
‣ 1 x Security lock slot, Integrated cable management

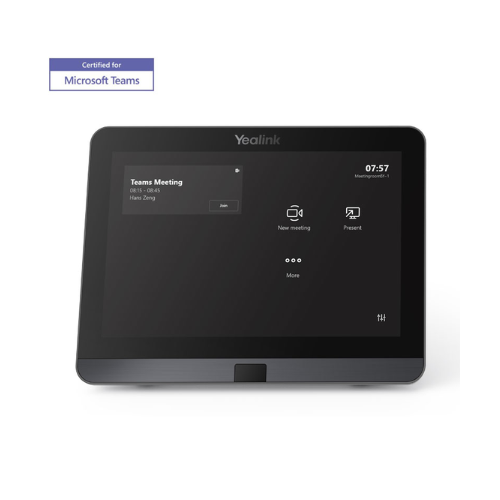

MTOUCH E2:

‣ 8-inch IPS screen
‣ 1280 x 800 resolution
‣ 10-point capacitive touch screen
‣ 3.5 mm headset jack
‣ Angle adjustable bracket (28° – 50°)
‣ 1080P/30FPS FHD for sharing
‣ Support wired and wireless content sharing
‣ Built-in Wi-Fi AP for Yealink wireless presentation device
‣ HDMI/USB-C HD video input

UVC40:

‣ 20 MP Camera
‣ 8x e-PTZ Camera
‣ Field of view (diagonal): 133°
‣ Auto Framing
‣ Speaker Tracking
‣ AI Face Enhancement
‣ Camera Presets
‣ Built-in 8 MEMS microphone array
‣ Yealink Noise Proof Technology
‣ Beamforming directed voice pickup technology
‣ Full-duplex technology
‣ Echo cancellation technology
‣ 1 x Yealink Microphone port (RJ-45)
‣ 1 x Line-in (3.5 mm)
‣ 1 x USB 3.0 Type-B
‣ 1 x USB 2.0 Type-A
‣ 1 x 2.5 m USB 2.0 cable
‣ 1 x Reset slot
‣ 1 x Power port
‣ 1 x Security lock slot, Integrated cable management
