MIC Unitized Tight-Buffered Plenum 96 F multimode Interlocking Armored Cable 096T88-Y3190-A3

Product Information

Specification

About :

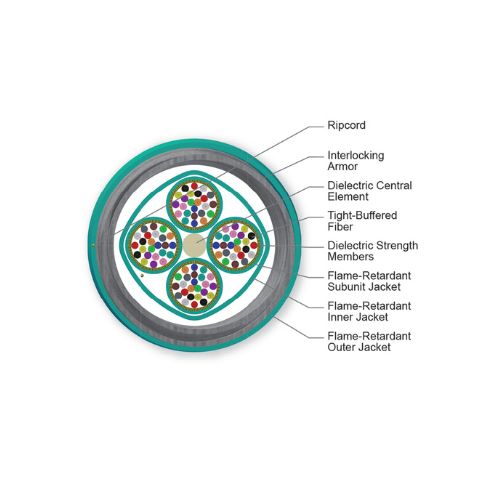

Corning MIC unitized interlocking armored plenum cables are standard MIC unitized cables designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use individually jacketed 900 μm buffered fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into 6-, 12-, or 24-fiber jacketed subunits for quick and easy identification. These subunits surround a dielectric central member and are protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and up to seven times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables for routing inside buildings, through riser shafts, to telecommunication rooms and to workstations.

Specifications :

Product Number : 096T88-Y3190-A3
EAN Code : 4056418171661
Cable Type : Tight-Buffered
Environment : Indoor
Product Type : Interlocking Armor
Fiber Category : 50 µm MM (OM4)
Flame Rating : Plenum (OFCP)
Application : General Purpose Horizontal,  Plenum,  Vertical Riser
Fiber Count : 96
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Fiber Code : T
Fiber Type : Multimode
Performance Option Code : 90
Fiber Core Diameter : 50 µm
Minimum Effective Modal Bandwidth (EMB) : 4700 MHz*km / -
Maximum Attenuation : 2.8 dB/km / 1.0 dB/km
Min. Overfilled Launch (OFL) Bandwidth : 3500 MHz*km / 500 MHz*km
Serial 1 Gigabit Ethernet : 1000 MHz*km / 600 MHz*km
Serial 10 Gigabit Ethernet : 550 MHz*km / -
Wavelengths : 850 nm / 1300 nm
Fiber Category : OM4

Features :

• Quick and easy identification

• Seven times crush protection compared to non-armored cables

• Easy, consistent stripping

• Rugged and durable
