MCoreKit-C4-MS Native Microsoft Teams Rooms system BaseKit YEA-MCOREKIT-C4-MS

Product Information

Specification

About:

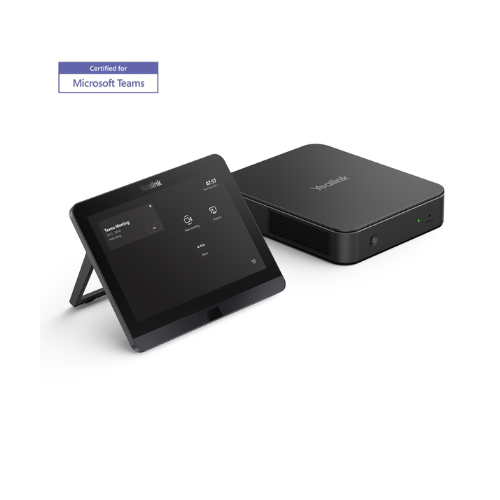

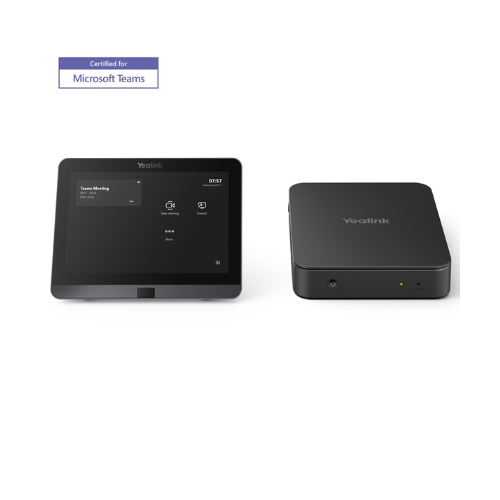

The MCoreKit-C4-MS is a Native Microsoft Teams Rooms Base Kit, including the MCore Pro Mini-PC, MTouch Plus, and RoomSensor. Powered by an Intel 11th Gen i5 processor, the MCore Pro supports triple-screen displays via three HDMI outputs and ensures data security with TPM 2.0. Its CEC-enabled auto wake-up screen and built-in security slot enhance convenience and reliability. The MTouch E2, Yealink's advanced touch panel, streamlines call control, camera management, and content sharing, with a Human Motion Sensor for automatic system wake-up, enabling instant conference starts.

Specifications:

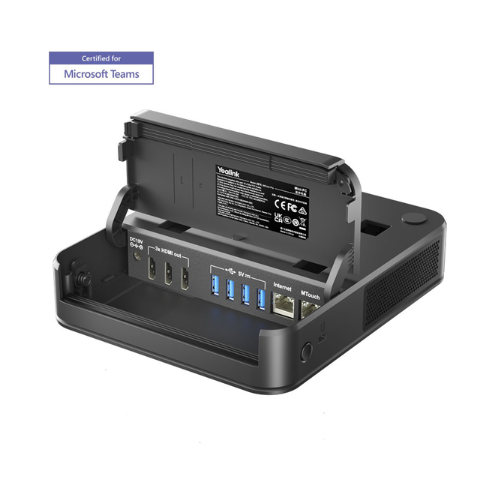

MCORE PRO GEN-3:

• 11th Gen Intel Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management

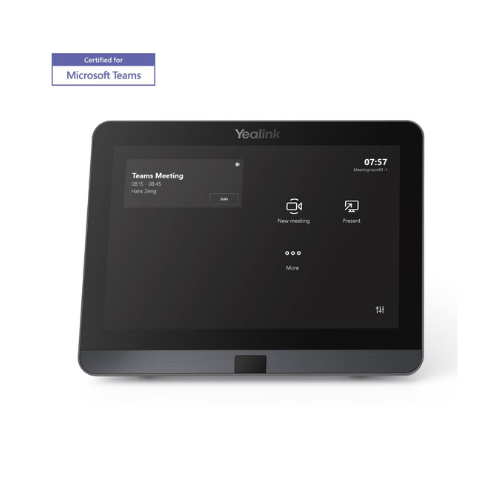

MTOUCH E2:

• Resolution: 1280 x 800
• Wireless Sharing: WPP30
• Wireless BYOD: Support (2023.H2)
• Third -Party Sharing: Not Supported
• Multi -Console Control: Not Supported
• Sharing Device Power Supply: Not Supported
• Motion Sensor Deployment: Built in MTouch E2
