Product Information
Specification
Applications:
Magnilumen Plus is the perfect upgrade option where energy savings and lighting efficiency is key in applications like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene. Troffer Lighting, Indoor Signage, Vapor Tights, Emergency Backup, Retail Display, Task Lighting, High Bays, Surface Mount, Channel Lights, Cove Lighting, Direct & Indirect, Tamper Proof.
Description:

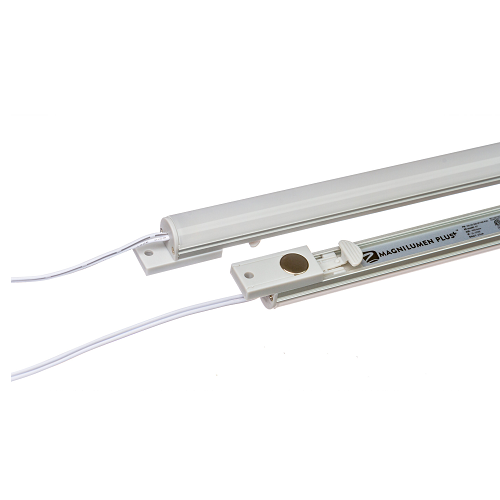

Magnilumen Plus is available to retrofit 4-foot fluorescent fixtures with standard 0-10 volt dimming. Kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene.
Benefits:
• Increased Lumen Output:20% increase in output per LED Board. •Enhanced Product Flexibility:Wattage Selectable and Color Selectable (CSK - Color Selectable Kelvin in Retail Packs Only) options allow the end user to adjust lumen output and color temperature to their specific needs. •Ease of Use:New Pre-installed onboard magnets and slide out foot for screw mounting, making installation a breeze. •Energy Savings:DLC (150 lm/W) with cover installed made possible via higher product efficacy. Also 180 lm/W without cover for maximized savings.
Features:
• Rated:ETL and DLC •Lumens:150 lm/W with frost diffuser, 180 lm/W no diffuser •Voltage Input:100-277VAC, 100-347VAC (spec. order) •CRI:80+ (standard); 90+ (special order) •Color Temperatures:30K, 35K, 40K, 50K, 65K, Green, Blue, Orange, Red, Black. Yellow and Amber special order. (color selectable in retail pack only). •Operating Temp:-40F – 122F •Wattages:Wattage selectable drivers •Surge Supression:2KV •Dimming:0-10VDC •IP Rating:IP20 for damp locations •Warranty:5 years
KIT Options:
• Job Pack:Magnetic LED boards, selectable magnetic driver, 24” 2 or 3-way harness, and screws (30K, 35K, 40K, 50K, 65K, Green, Blue, Yellow, Orange, Red) • Retail Pack:Magnetic LED boards, selectable magnetic driver, 24” 2-way harness with CSK switch, and screws (35K, 40K, 50K)
Pack Includes:

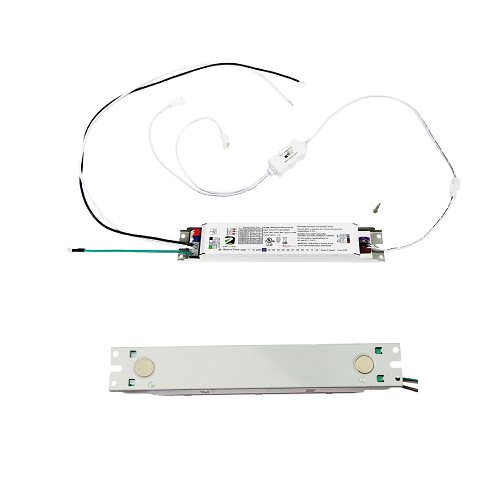

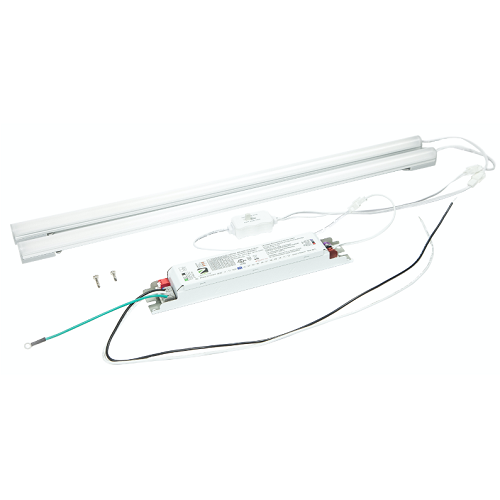

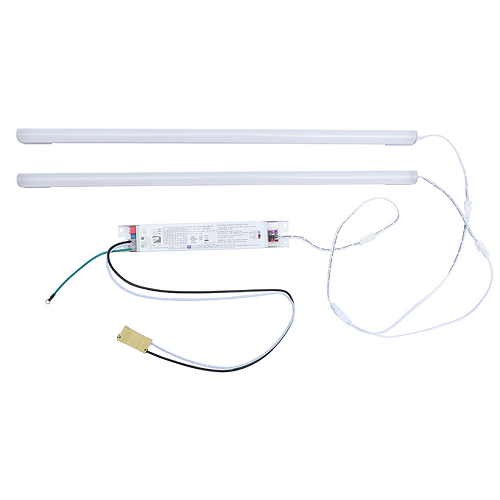

•2 Magnetic LED Retrofit Boards •Magnetic LED driver (power supply) •24” 2-way Harness •Mounting Screws
