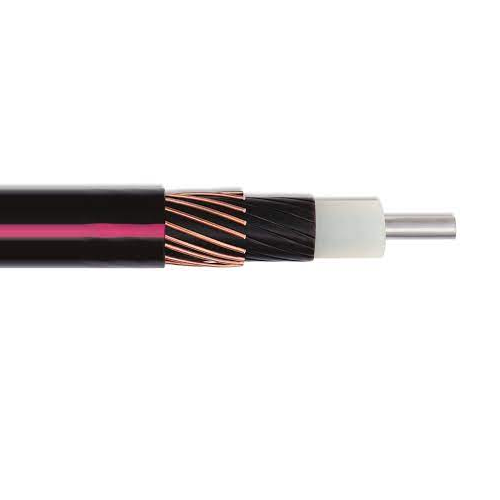

LS E9KKM-1A3S01CA00 1/0 AWG Solid Al Full Neutral Shield LLDPE 260mils Series E9KK 25kV 100% MV-90 Primary UD Cable

LS E9KKM-1A3S01CA00 1/0 AWG Solid Al Full Neutral Shield LLDPE 260mils Series E9KK 25kV 100% MV-90 Primary UD Cable

Allowable Ampacity for LS E9KKM-1A3S01CA00 1/0 AWG Solid Al Full Neutral Shield LLDPE 260mils Series E9KK 25kV 100% MV-90 Primary UD Cable: 100 Amps

Applicable Standards:

• Suitable for underground primary power applications
• For wet or dry locations
• For direct burial or in duct

Also Known as:

UD Cable, LS Cable, E9KK Cable, Primary UD Cable, LS E9KK Cable, E9KK UD Cable

Description:

The Medium Voltage Primary Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with tree-retardant cross-linked polyethylene (TR-XLPE), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.

Features:

• High dielectric strength
• Low moisture absorption
• Low dielectric loss
• Excellent resistance to treeing
• Jacket is sunlight-resistant
• Designed to operate continuously at a conductor temperature not exceeding
» 90°C for normal operations
» 130°C for emergency overload
» 250°C for short circuit

Specification:

AWG Size: 1/0
Concentric Neutral No. x AWG: 16 x 14
Insulation: Polyethylene (TR-XLPE)
Jacket: Polyethylene (LLDPE)
Nominal Conductor Diameter¹ in (mm): 0.325 (8.3)
Nominal Insulation Diameter¹ in (mm): 0.893 (22.8)
Nominal Jacket Thickness¹ in (mm): 0.055 (1.40)
Nominal Overall Diameter¹ in (mm): 1.193 (30.5)
Ampacity Underground Duct²: 166
Ampacity Direct Buried²: 219
Nominal Net Weight: 731 lbs/kft
Part Number: E9KKM-1A3S01CA00
