Locking Clamp Barb Tie Black 50lb Dome-Top BC2S-S10-D0 (Pack of 500)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Used to secure a cable bundle to another surface such a control panel, wall or ceiling. |
| Product Type | Locking Clamp Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E |
| Material | Weather Resistant Nylon 6.6 |
| Standards Met | UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854) |
| Screw Size | #10 (M5) |
| Maximum Bundle Diameter (In.) | 2 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Sub Brand | Dome-Top |
| Mounting Hole Diameter (mm) | 5.1 |
| Mounting Hole Width (In.) | 0.4 |
| Mounting Hole Width (mm) | 10.2 |
| Overall Length (In.) | 8.5 |
| Overall Length (mm) | 216 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Resistance Properties | UV Resistant |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Part No | BC2S-S10-D0 |

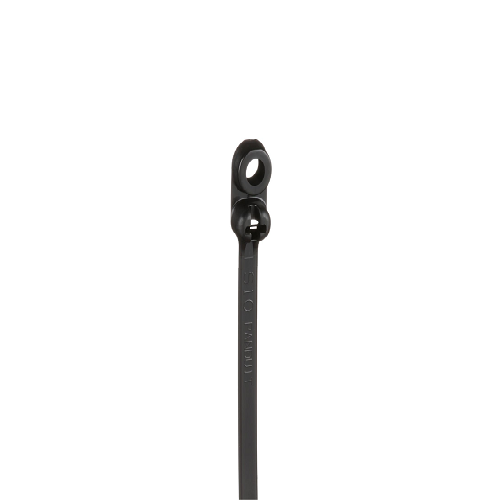

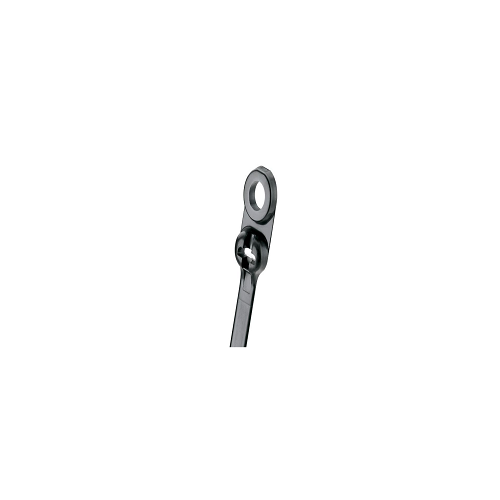

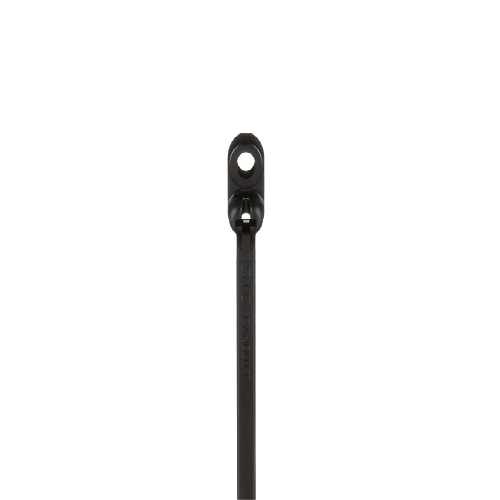

Locking Clamp Barb Tie Black 50lb Dome-Top BC2S-S10-D0
DESCRIPTION :
The BC2S-S10-D0 Dome-Top® barb ty clamp tie, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.5” (216mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light,
Download PDF Spec Sheet
