Lead Frame Keystone Unshielded Jack Module Off White NK5E88MIWY
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

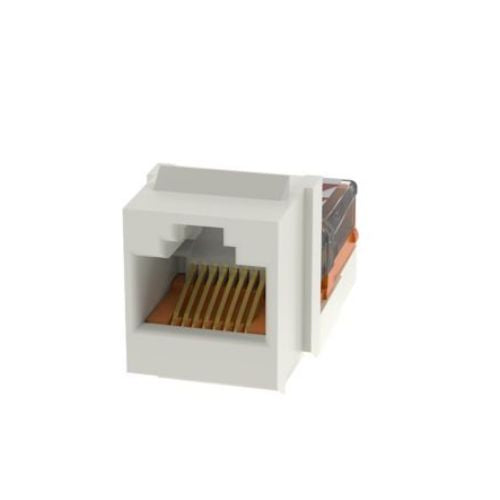

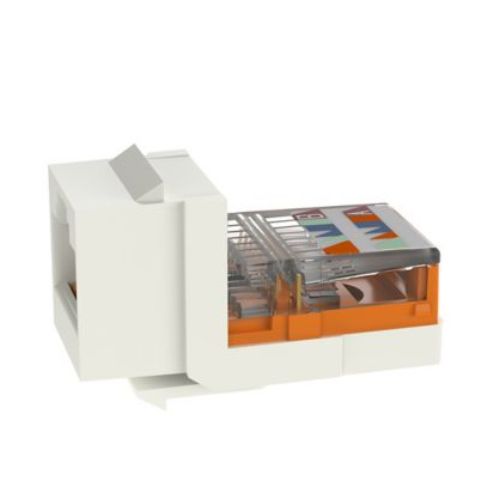

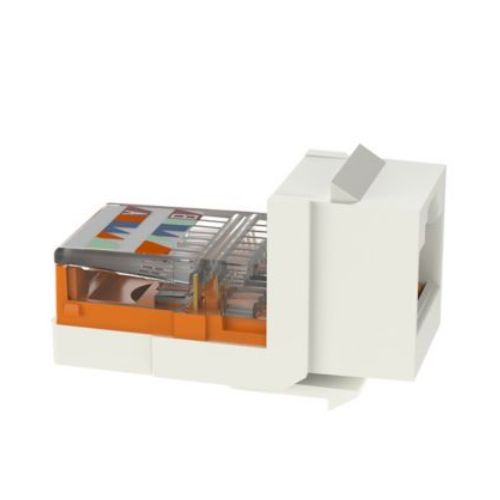

• The Lead Frame Keystone Unshielded Jack Module is designed for use in network installations requiring reliable and straightforward connectivity. This module features a lead frame design, which provides a secure and stable connection for unshielded twisted pair (UTP) cables.
• It is ideal for various networking applications where shielding is not required. The keystone format allows for easy installation and compatibility with standard keystone faceplates and patch panels, making it a versatile choice for network infrastructure.
• The NetKey® Cat 5e UTP RJ45 Leadframe Keystone Jack Module is designed for terminating 4-pair, 22-24 AWG twisted pair cables. Each module is rigorously tested at the factory for continuity to ensure reliable performance.
• The contacts are plated with 50 microinches of gold to provide superior conductivity and durability. This jack module is compatible with various keystone interfaces, including NetKey Faceplates, Modular Patch Panels, and Surface Mount Boxes. It is finished in international white.
Also Known As:
Lead Frame Keystone Jack, Unshielded Keystone Jack Module, UTP Keystone Jack, Lead Frame Network Jack, Unshielded Network Module, Keystone RJ45 Jack.
Specification:
| Product Type | Jack Module |
| Color | Off White |
| Body Material | ABS/Polycarbonate |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Shield Type | Unshielded (UTP) |
| Depth | 1.37 In |
| Height | 0.87 In |
| Length | 1.37 In |
| Width | 0.65 In |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Part No. | NK5E88MIWY |
Features:
• Lead Frame Termination Provides a stable and reliable connection for twisted pair cables.
• Material Construction ABS housing and polycarbonate wire cap for durability.
• Temperature Range Operating temperature from -14 to 140°F (-10 to 60°C); storage temperature from -40 to 158°F (-40 to 70°C).
• Performance Testing 100% performance tested to ensure each module meets specified performance standards.
• Strain Relief and Cable Management Termination cap offers strain relief, controls cable bend radius, and securely retains wires.
• Universal Keystone Compatibility Modules snap in and out of all NetKey® faceplates, modular patch panels, and surface mount boxes for quick installation and changes.
• Serialized for Quality Control Individually serialized with a quality control number for traceability and assurance.
• Ideal for High-Volume Installations Suitable for large-scale projects with multiple termination styles available.
