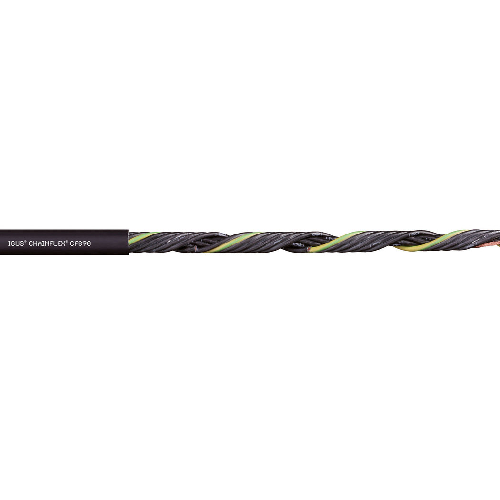

Igus CF890-07-05 18 AWG 5C Stranded Bare Copper Unshielded PUR 600V Chainflex CF890 Control Cable

Igus CF890-07-05 18 AWG 5C Stranded Bare Copper Unshielded PUR 600V Chainflex CF890 Control Cable

Allowable Ampacity for Igus CF890-07-05 18 AWG 5C Stranded Bare Copper Unshielded PUR 600V Chainflex CF890 Control Cable: 100 Amps

Also Known as:

Control Cable, Chainflex Cable, Chainflex CF890 Cable, CF890 Cable, Flexible Cable, IGUS Cable, Continues-Flex Cable, Dynamic Cable, Flexing Cable, Flex Cable, Linear Motion Cable

Description:

Chainflex Control Cable CF890

Typical application areas:

• For flexing applications
• With influence of oil
• Indoor and outdoor applications without direct solar radiation
• Especially for unsupported travels
• Machining units/machine tools, low temperature applications

Construction:

• Conductor: Conductor consisting of bare copper wires (according to DIN EN 60228)

• Conductor Insulation: Mechanically high-quality TPE mixture.

• Conductor Construction: Conductors cabled with an optimized pitch length

• Outer Jacket: Low-adhesion mixture on the basis of iguPUR, adapted to suit the requirements in E-Chains

• Color Code: Black with white numbers, one conductor green-yellow

Properties and Approvals:

• UV Resistance: Medium
• Oil resistance: Oil-resistant (following DIN EN 50363-10-2), Class 3
• Flame Resistance: According to IEC 60332-1-2, FT1, VW-1
• Silicone-free: Free from silicone which can affect paint adhesion (following PV 3.10.7 – status 1992)
• UL Verified: Certificate No. B129699: igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year
• UL/CSA AWM: 600 V, +80 °C
• EAC: Certificate No. RU C-DE.ME77.B.00300/19 (TR ZU)
• Reach: In accordance with regulation (EC) No. 1907/2006 (REACH)
• Lead-free: Following 2011/65/EC (RoHS-II/RoHS-III)
• CE: Following 2014/35/EU

Specification:

AWG Size: 18
Number of Conductor: 5
Rated Cross Section: 0.75 mm²
Conductor: Bare Copper
Insulation: TPE
Jacket: PUR
Shielding Type: Unshielded
Outer Diameter: 0.28 inch
Copper Index: 26.9 lbs/mft
Voltage: 600 V
Weight: 47.7 lbs/mft
Part Number: CF890-07-05
