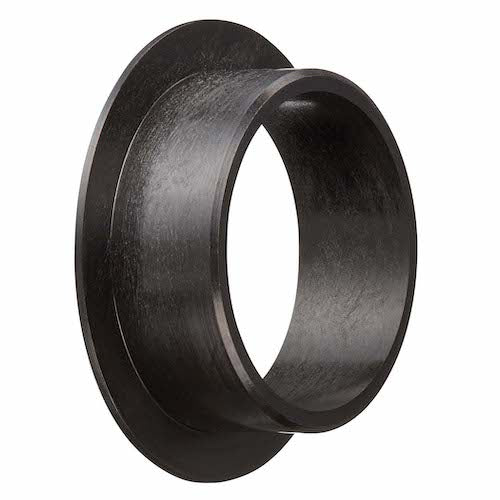

iglide® GLW, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
DIMENSIONS:
|
Length of bevel (f) |
0.5 mm |
| Outer diameter d2 [mm] | 10.0 mm |
| Flange diameter d3 [mm] | 15.0 mm |
| Bearing length b1 [mm] | 9.50 mm |
| Flange thickness b2 [mm] | 1.00 mm |
| d1-Tolerance bearing |
+0.025 +0.083 mm, E10 |
| Ø d1 |
8.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.025 +0.083 mm, E10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.015 mm, H7 |
| Tolerance shaft |
0 -0.036 mm. h9 |
| d1 after press-fit (max.) | 8.083 mm |
| d1 after press-fit (min.) | 8.025 mm |
| Housing bore (max.) | 10.015 mm |
| Housing bore (min.) | 10.000 mm |
| Shaft size (max.) | 8.000 mm |
| Shaft size (min.) | 7.964 mm |
Description:
- Applications with static loads
- Cost-effective
- Dirt-resistant
- Resistant to vibrations
- Self-lubricating and maintenance-free
We can offer our customers bearings made from the material iglide® GLW as an alternative to iglide® G300 for high volume applications.
Features:
- Cost-effective material for mass production
- Applications with static loads
- Cost-effective
- Dirt-resistant
- Resistant to vibrations
- Self-lubricating and maintenance-free
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
