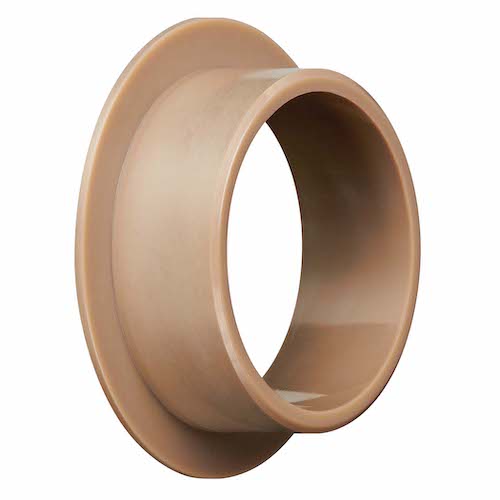

iglide® A500, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 4.5 mm |
| Flange diameter d3 [mm] | 7.0 mm |
| Bearing length b1 [mm] | 5.00 mm |
| Flange thickness b2 [mm] | 0.75 mm |
| d1-Tolerance bearing |
+0.010 +0.058 mm, F10 |
| Ø d1 |
3.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.010 +0.058 mm, F10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.010 mm, H7 |
| Tolerance shaft |
0 -0.025 mm. h9 |
| d1 after press-fit (max.) | 3.058 mm |
| d1 after press-fit (min.) | 3.010 mm |
| Housing bore (max.) | 4.510 mm |
| Housing bore (min.) | 4.500 mm |
| Shaft size (max.) | 3.000 mm |
| Shaft size (min.) | 2.975 mm |
Description:
- Compliant with EC directive 10/2011 EC
- FDA-compliant
- Temperature resistant from -212 °F to +482 °F
- High chemical resistance
- Lubrication and maintenance-free
- Standard range from stock
iglide® A500 bearings are permitted for direct contact with foodstuffs. They exhibit an exceptionally good chemical resistance and are suitable for heavy-duty use in machinery for the food industry.
Features:
- The endurance runner at higher temperatures in the food sector
- Compliant with EC directive 10/2011 EC
- FDA-compliant
- Temperature resistant from -212 °F to +482 °F
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
