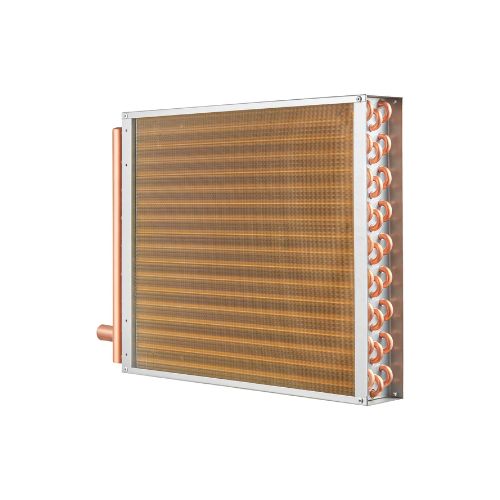

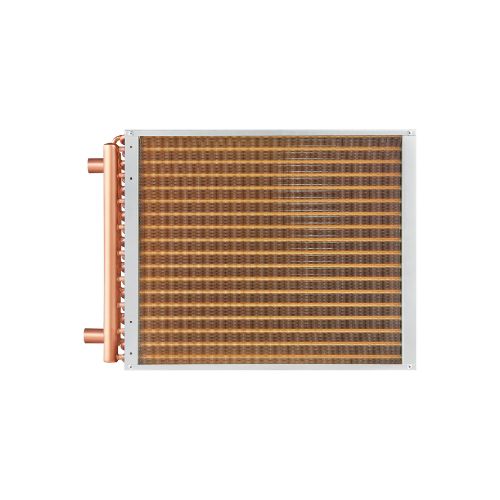

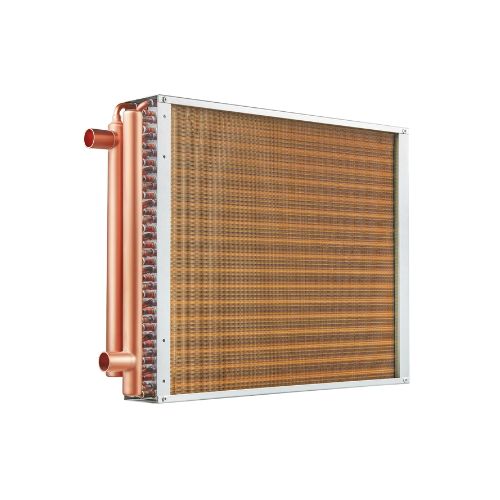

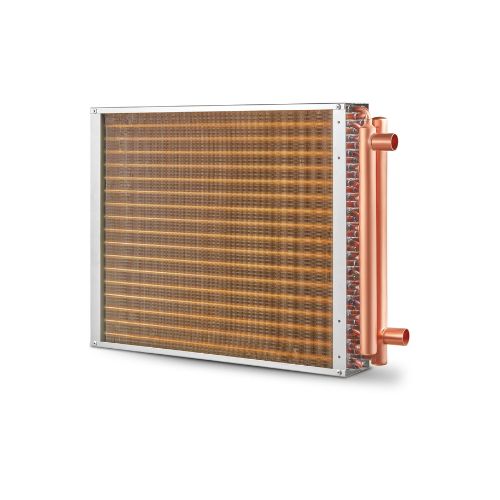

High Output 18 x 20 Inch Water-to-Air Heat Exchanger with Heating and Cooling Applications

Product Information

Specification

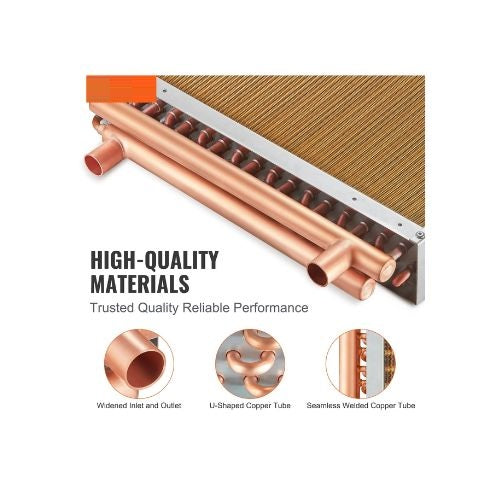

High-Quality Construction Materials:

Fully copper-brazed at all edges and contact points to ensure a strong, durable, and leak-resistant structure capable of withstanding high pressure and high-temperature conditions. CE certified for dependable quality assurance.

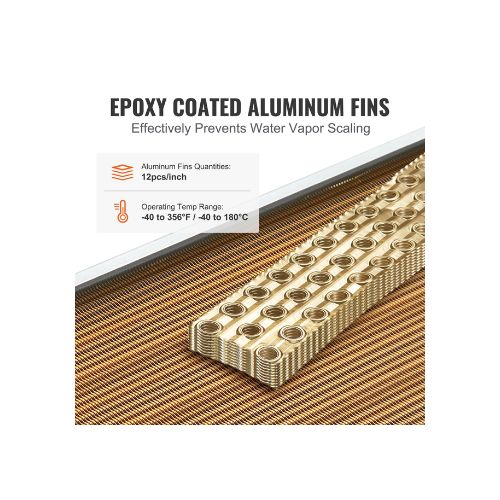

Durable & Corrosion-Resistant Design:

Equipped with epoxy-coated aluminum fins offering high hardness, wear resistance, and excellent corrosion protection. Helps minimize scaling from moisture and ensures efficient long-term heat exchange performance. Rated for operating temperatures from -40°F to 356°F (-40°C to 180°C).

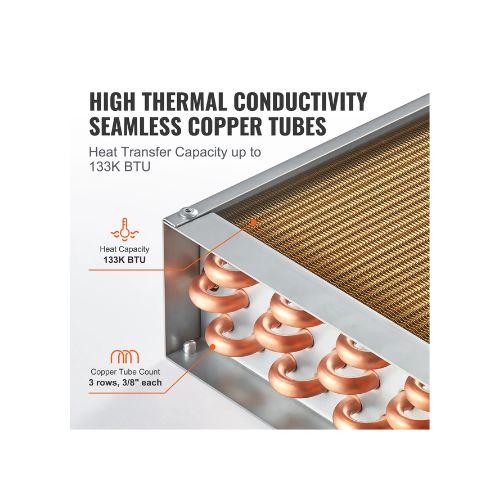

High Efficiency Heat Transfer Performance:

Delivers up to 160,000 BTU per hour output, supported by 3 rows of 3/8" seamless copper tubing and 12 fins per inch design. Threaded copper tubes increase fluid contact area, significantly improving thermal transfer efficiency and overall system performance.

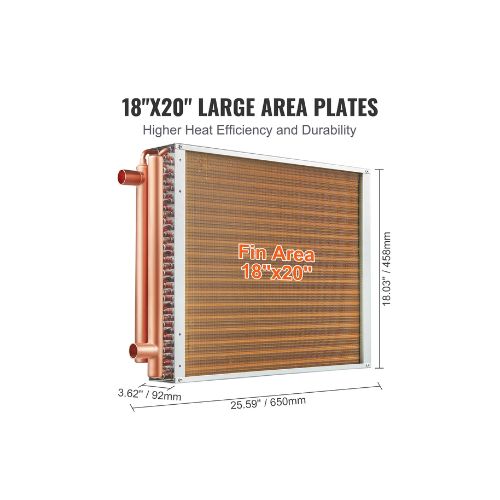

Large Heat Exchange Surface Area:

Designed with an 18” x 20” effective heat transfer surface and 242 high-density aluminum fins, providing excellent airflow interaction and maximizing heat exchange capacity across a wide range of heating and cooling applications.

Sealed & Leak-Proof Reliability:

Manufactured using advanced high-pressure vacuum brazing technology and subjected to strict leak testing to eliminate micro-leaks, ensuring long service life, stable operation, and high system reliability.
