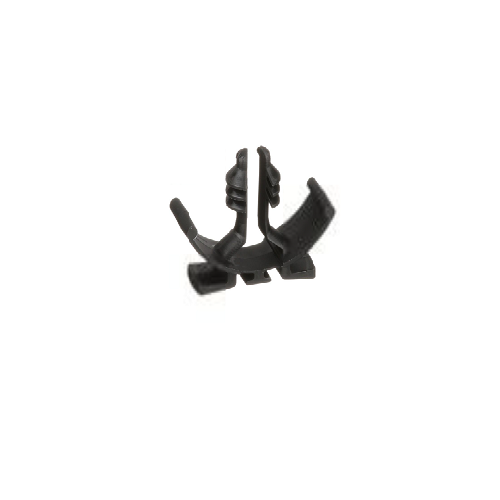

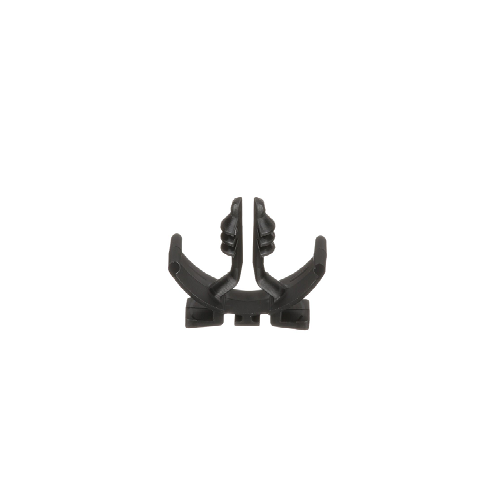

Harness Mount Black High Heat THM1SC-M30 (Pack of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Harness Cable Tie Mount is Applied With a Fir Tree Push Barb, for Indoor Environments |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.25 |
| Maximum Compatible Panel Thickness (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Fir Tree Mount |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
| Overall Length (In.) | 0.98 |
| Overall Length (mm) | 24.9 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 9.7 |
| Resistance Properties | Heat Resistant |
| Standards Met | UL Recognized E136577, RoHS Compliant |
| Part No | THM1SC-M30 |
Harness Mount Black High Heat THM1SC-M30 (Pack of 1000)
DESCRIPTION :
Panduit THM1SC-M30 Harness Mount with a fir tree push barb, holds wire bundles tightly and installs quickly into pre-drilled holes. The mount requires a panel hole diameter of .250" (6.5 mm) and panel thickness between .03" to .14" (.9 mm to 3.4 mm)for application. For use in indoor and high-temperature environments. Made of Heat Stabilized Nylon 6.6, are black in color
Download PDF Spec Sheet
