Fiber Transmitter and Receiver SINGLE-CHANNEL FTV10D1S1ST

Product Information

Specification

Description:

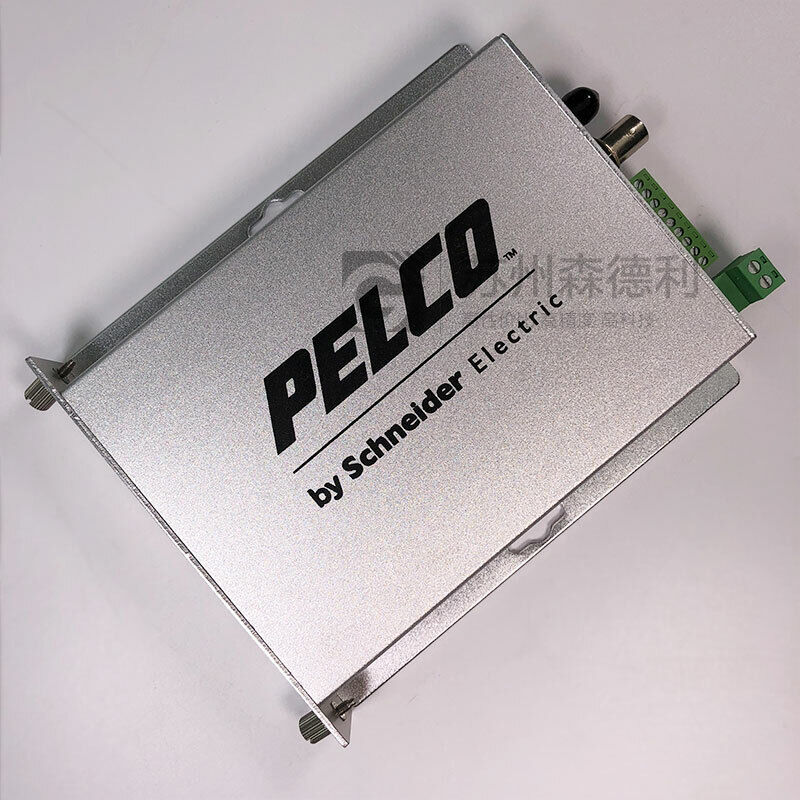

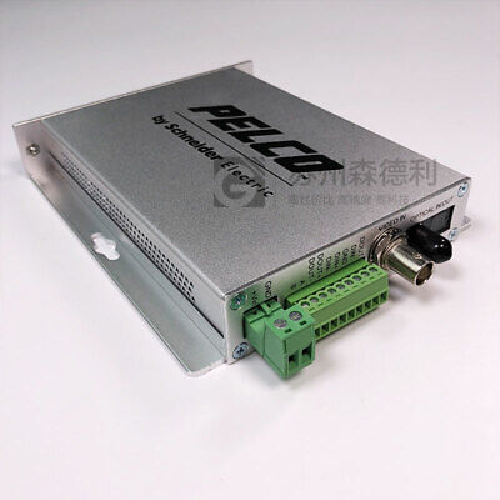

The FTV10D1S1ST fiber transmitter allow transmission of one unidirectional composite video channel and one bidirectional data channel over one optical fiber. In addition, the “up-the-coax” technology allows Coaxitron pan/tilt/zoom (PTZ) control data to be transmitted the full distance of the fiber (up to 48 km for single-mode fiber). When using single-mode fiber, the FTV10D1S1ST transmitter offer an optical power budget of 23 dB.

The FTV10D1S1ST plug-and-play design ensures ease of installation by requiring no electrical or optical adjustments. Modular in design, FTV10D1S1ST unit can be rack-mounted using the EURACK/USRACK chassis, or stand-alone modules can be placed on a desktop or mounted to a wall (wall mount kit not required).

Key Features:

1. •10-Bit Digitally Encoded Video for High-Quality Video Transmission over a Single Fiber
2. •Bidirectional Data Channel that Supports RS-232, RS-422, RS-485 (2-wire/4-wire), Manchester, Bi-Phase, and Coaxitron® Communication
3. •Supports Pelco Coaxitron “Up-the-Coax” Control Signals for a Distance up to 48 km (30 mi) •Multimode Fiber Support for Distances up to 3 km (2 mi)
4. •Single-Mode Fiber Support for Distances up to 69 km (43 mi)
5. •Exceeds All Requirements for RS-250C Short-Haul Transmission
6. •Laser Diode for Transmission of Optical Signals
7. •Compatible with NTSC, PAL, and SECAM Video Standards
8. •Designed to Meet NEMA TS-1/TS-2 and Caltrans Traffic Signal Control Equipment Environmental Standards
9. •Stand-Alone and Rack-Mountable Modular Design
10. •LED Status Indicators for Monitoring All Critical Operating Parameters
