Product Information
Specification
| Type | Twisted Pair, DATA, Voice, LAN, and Coaxial |
| Drop Protection | 2 m |
| Application | Cable Testing |
| Supported Remotes | 18 |
| Special Features | Measures Cable Length; Backlit LCD; Hub Blink |
| Connection & Adapter Types | RJ11, RJ12, RJ45, Coax F |
| Cable Type | DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q |
| Display | Backlit LCD |
| Overall Length | 7'' |
| Overall Height | 3'' |
| Overall Width | 1.25'' |
| Multiple Style Tone Generator | Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately |
| Faults Detected | Open, Short, Miswire |
| Test & Measure Types | Ethernet / Data and Coaxial |
| Accuracy | Length Measurement: +/- 5% (ft) or 5% m |
| Material | Plastic and Metal |

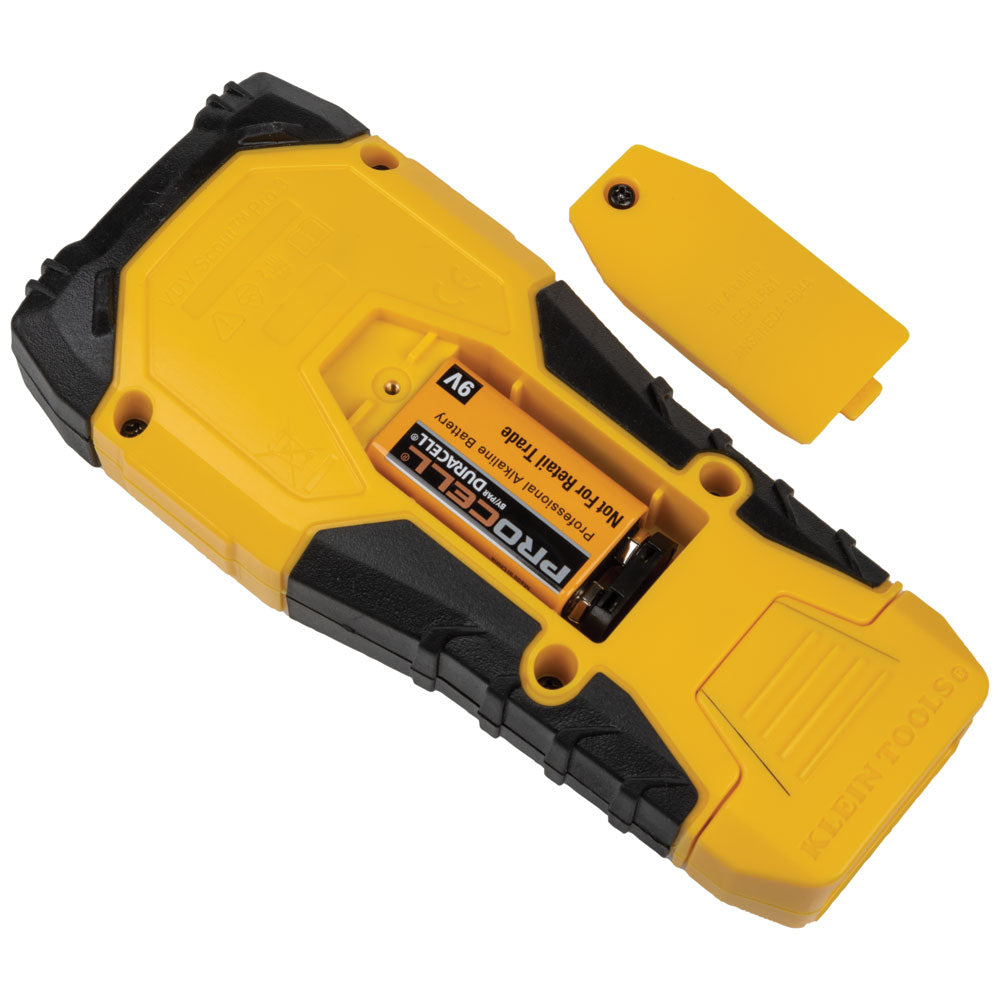

| Batteries | 9V Alkaline |
| Part Number | VDV501-851 |
Ethernet Cable Tester Kit with Scout® Pro 3 Tester, Remotes and Adapter - VDV501-851
Description :-:

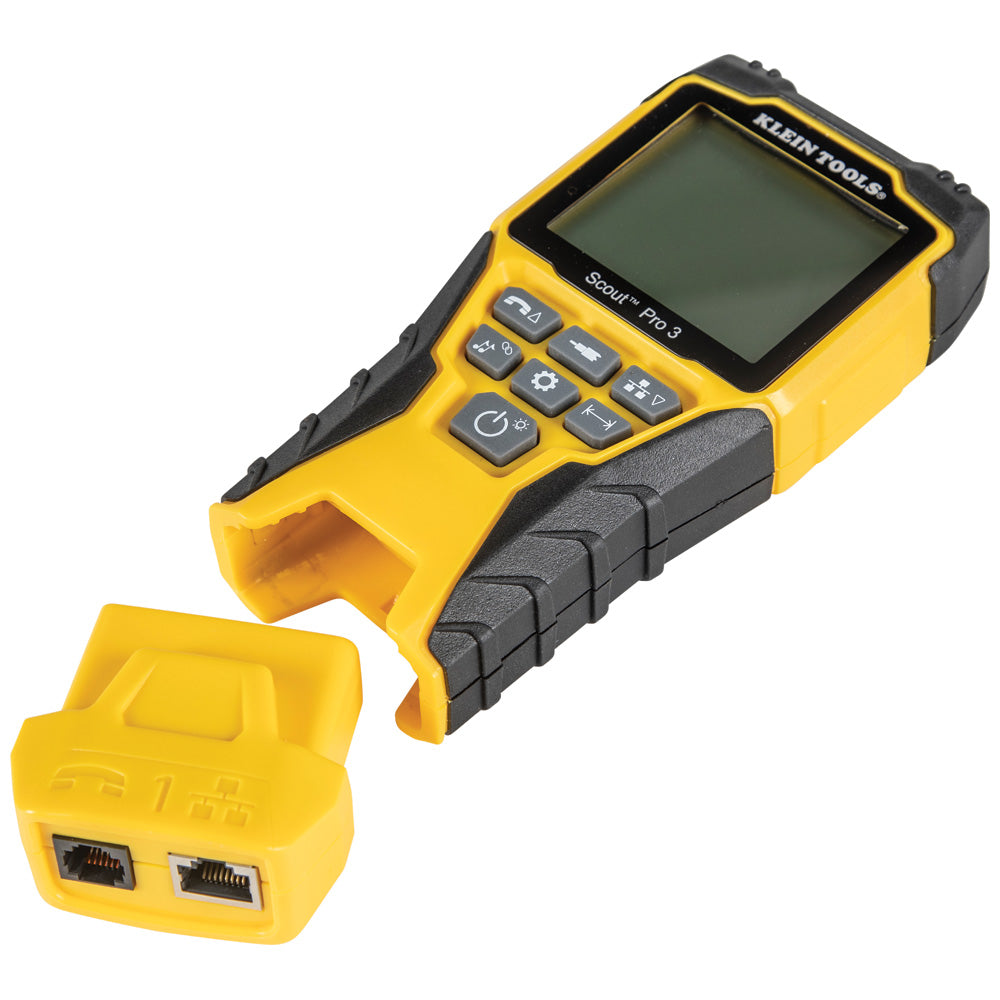

The Scout® Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Key Features :-:
-
☛ Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results.
☛ Measure cable length up to 2000 feet (610 m).
☛ Test for Open, Short, Miswire or Split-Pair faults.

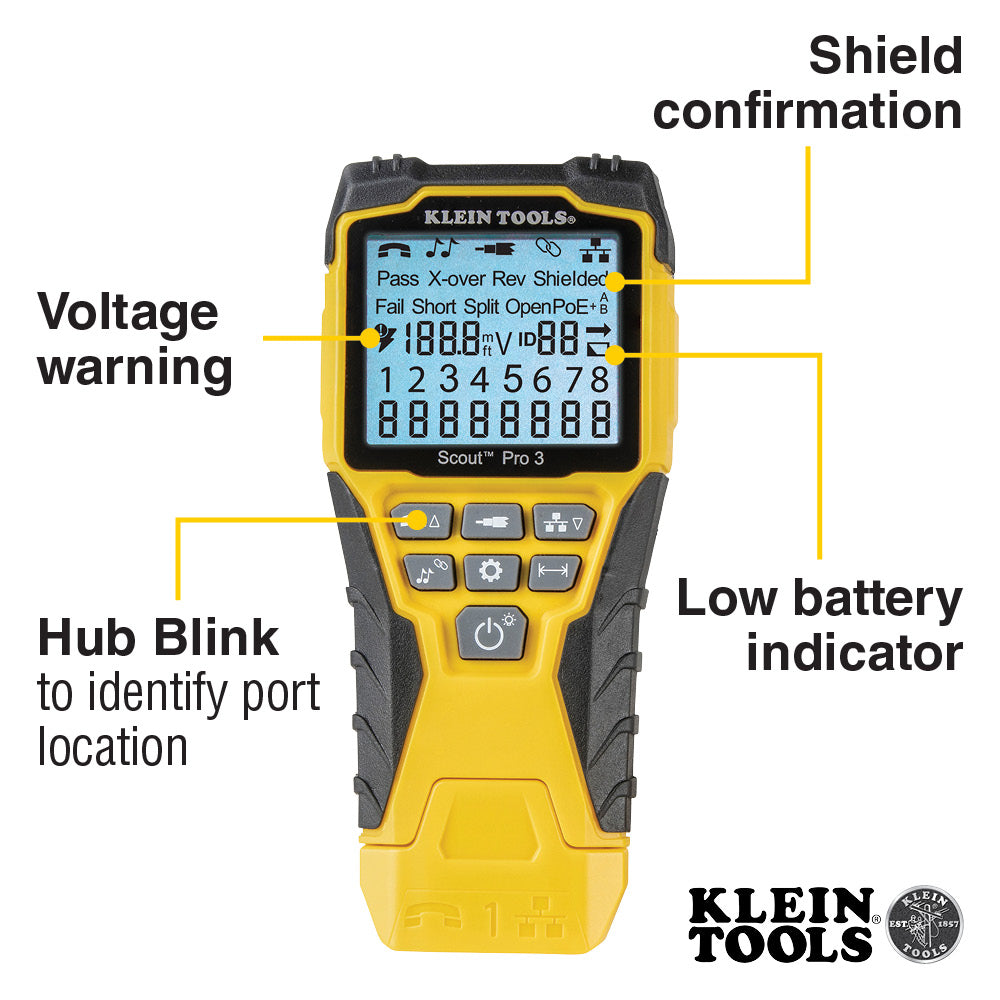

☛ Backlit LCD screen displays cable length, wiremap, cable ID and test results.
☛ Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately).
☛ Hub blink mode to identify port location on a hub or a switch.

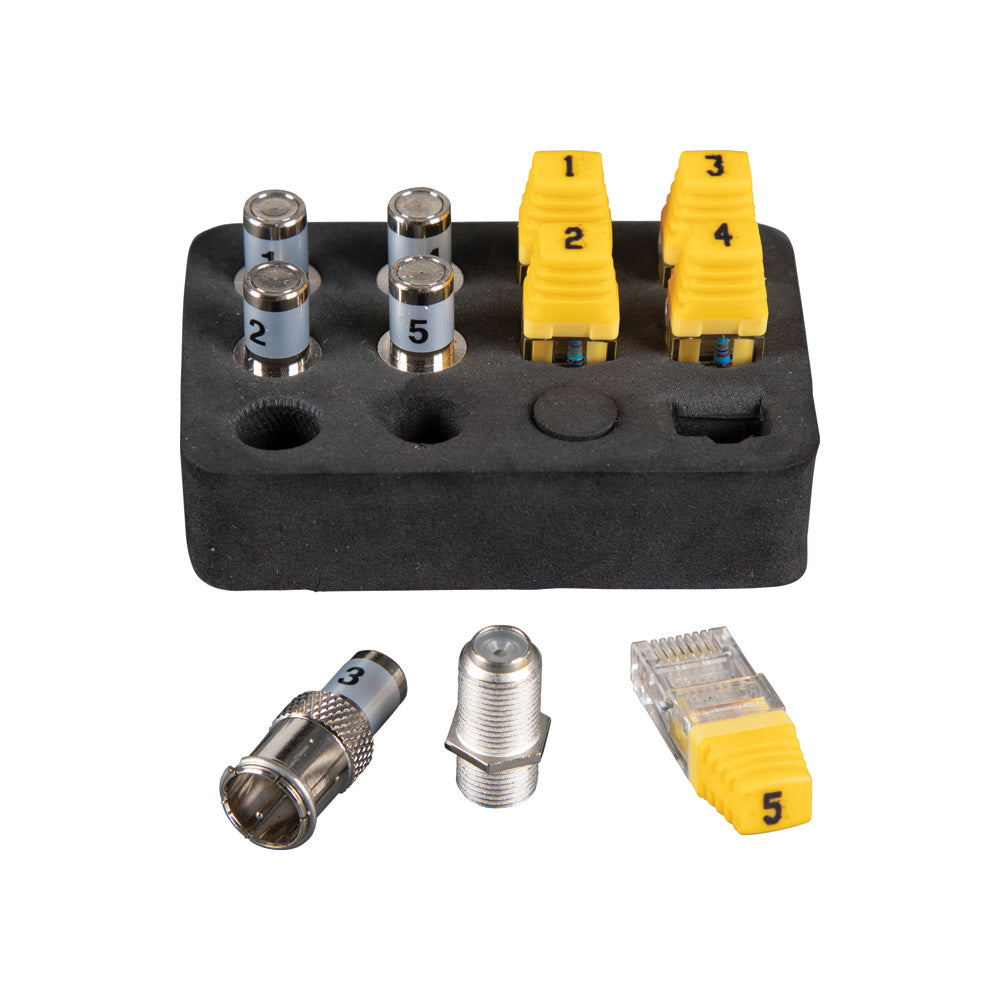

☛ LanMap™ and CoaxMap™ Location Remotes (5 each) map and ID multiple cable runs in a single step. -
☛ Auto Power-off feature to conserve battery life (9V included).
Download PDF Spec Sheet
