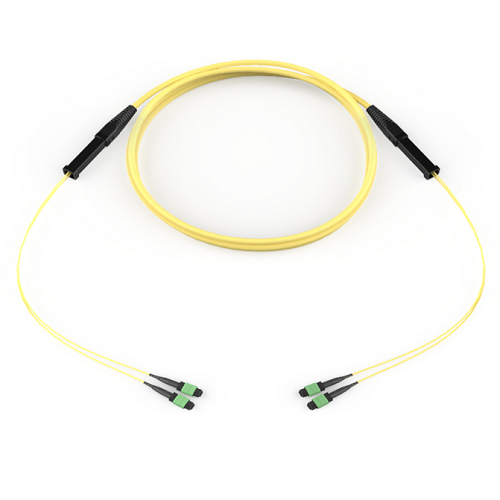

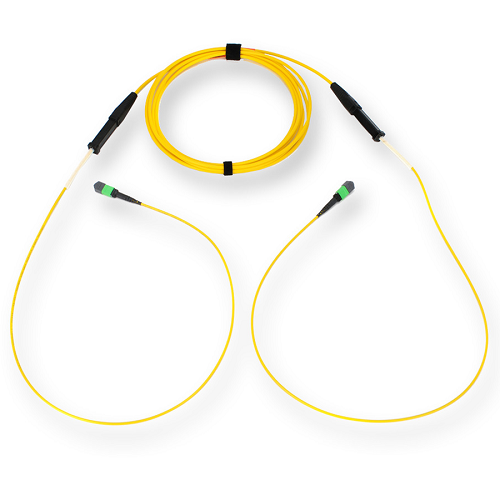

EDGE MTP Trunk Bend-improved Single-mode OS2 to MTP Connector 24 F with 33/33 Inch Legs Pulling Grip One Side 50" Ft G909024GPNDDU050F

Product Information

Specification

About:

EDGE MTP trunks provide the backbone of the EDGE solution. With non-pinned MTP connectors on both ends, these trunks are designed to interface with the EDGE solutions or Plug & Play systems modules. All MTP trunks are manufactured with Corning Clean Advantage and shipped with strain-relief clips to allow easy tool-less installation.

Specifications:

Flame Rating: Plenum (OFNP)
Fiber Category: Bend-improved Single-Mode (OS2)
Cable Assembly Type: EDGE Trunk
Environment: Indoor
Connector Assembly Type: MTP to MTP
Fiber Count: 24
Fiber Type: Single-Mode Ultra-Bendable Fiber
Fiber Code: G
Fiber Core Diameter: 8.2 µm
Fiber Category: OS2
Insertion Loss, Max.: 0.75 dB
Connector A Type: MTP (non-pinned))
Connector  B Type : MTP (non-pinned)
Pulling grip: Yes
Length: 50 Ft
Unit of Measure: Feet
Cable Type: Distribution
Fiber Mode: Single-Mode
Cable Weight: 33.6 lb/1000 ft
Outer Diameter: Standard
Reel Diameter: 23.5 in
Leg Diameter: 2 mm (0.08 in)
Reel Width: 5 in
Leg Color: Yellow
Leg Length (Connector A): 33 in (838 mm   -0 / +76mm (32.99 in   -0 / +2.99in))
Leg Length (Connector B): 33 in (838 mm   -0 / +76mm (32.99 in   -0 / +2.99in))
Part Number: G909024GPNDDU050F

Features:

• Snap-in strain-relief clips
Provide easier cable management
• Small outer diameter
Improves cable tray fill ratio and allows for imported airflow
• Low-loss connectivity
Enables system design flexibility
• Bend-improved fibre
Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
• Corning Clean Advantage technology and optimized dust cap
Eliminates the need for scoping and cleaning prior to initial field connection
