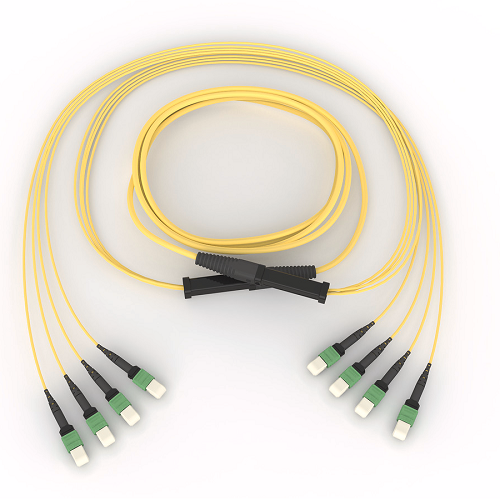

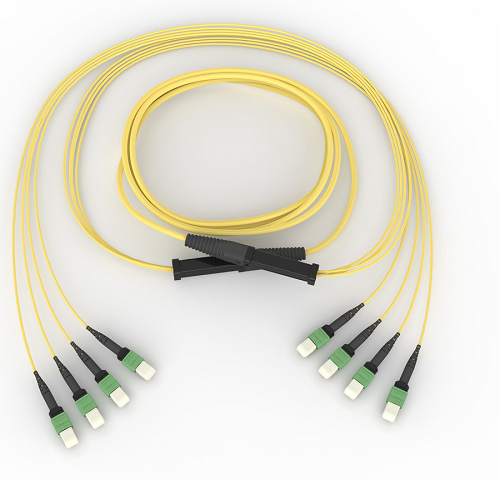

EDGE MTP Trunk 36F, Bend-Improved Single-Mode (OS2),100 ft
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Flame Rating: | Plenum (OFNP) |
| Fiber Category : | Bend-improved SM (OS2) |
|
Application:
|
Data Center LAN/SAN |
|
Cable Assembly Type: |
EDGE™ Trunk |
| Environment: | Indoor |
| Cable Type : |
Indoor: ANSI/ICEA S-83-596 |
| Connector Assembly Type : |
MTP to MTP |
|
Temperature Range, Operation:
|
-10 °C to 60 °C (14 F to 140 F ) |
| Fiber Count : | 36 |
| Outer Jacket Color : | Yellow |
| Polarity: | Universal, TIA-568 Type-B |
| Fiber Type: | Single-mode |
| Nominal Outer Diameter: | 8 mm (0.31 in) |
| Min. Bend Radius Installation: | 120 mm (4.72 in) |
| Min. Bend Radius Operation: | 40 mm (1.57 in) |
| Weight: | 56 kg/km (37.63 lb/1000 ft) |
| Fiber Code: | G |
| Fiber Type: | Single-Mode Ultra-Bendable Fiber |
| Fiber Compliance: | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter: | 8.2 µm |
| Wavelengths: | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category: | OS2 |
| Insertion Loss, Max.: | 0.35 dB |
| Boot Color: | Black |
| Connector Type: | MTP® (non-pinned) |
| Ferrule Material: | Composite |
| Reflectance: | < -65 dB |
| Pulling grip: | Yes |
| Tensile Strength: | 440 N (98.92 lbf) |
| Furcation Type: | EDGE™ Size 1, 14.7 mm x 14.7 mm x 108.6 mm |
| Leg Color: | Yellow |
| Leg Diameter: | 2 mm (0.08 in) |
| Leg Count: | 3 |
| Leg Length: | 838 mm (32.99 in) |
| EAN Code: | 4042673651628 |
| Product Number: | G909036GPNDDU100F |
EDGE MTP Trunk 36F, Bend-Improved Single-Mode (OS2),100 ft
Description:EDGE MTP trunks provide the backbone of the EDGE solution. With non-pinned MTP connectors on both ends, these trunks are designed to interface with the EDGE solutions or Plug & Play systems modules. All MTP trunks are manufactured with Corning CleanAdvantage™ and shipped with strain-relief clips to allow easy tool-less installation.
Features and Benefits:
Snap-in strain-relief clips
• Provide easier cable management
Small outer diameter
• Improves cable tray fill ratio and allows for imported airflow
Low-loss connectivity
• Enables system design flexibility
Bend-improved fiber
• Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
Corning® CleanAdvantage™ technology and optimized dust cap
• Eliminates the need for scoping and cleaning prior to initial field connection
