EDGE Housing 2 Rack unit holds up to 24 EDGE Modules or panels EDGE-02U
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Access Type: | Front and rear access slidable |
| Lockable: | Yes, rear side |
| Mounting Type: | Rack Mount, Cabinet Mount |
| Product Type: | Fiber Optic Hardware |
|
Application:
|
Data Center, Data Center LAN/SAN, |
|
RoHS: |
Free of hazardous substances according to RoHS 2011/65/EU |
| Number of Modules: | 24 |
| Cable entry type: |
Side brush entry |
| Cable Entry Direction: |
Rear |
| Housing Type: | EDGE™ HD |
| No. of Panels per Housing: | 24 |
| Color: | Silver |
| Fiber Capacity: | 288 |
| Minimum Cabinet Size: | 800 mm (31.5 in) |
|
Height:
|
88 mm (3.46 in) |
| Width: | 432 mm (17.01 in) |
| Depth: | 561 mm (22.09 in) |
| Weight: | 8.6 kg |
| Module Capacity: | 24 |
| Units per Delivery: | 1/1 |
| EAN Code: | 4056418144498 |
| Product Number: | EDGE-02U |

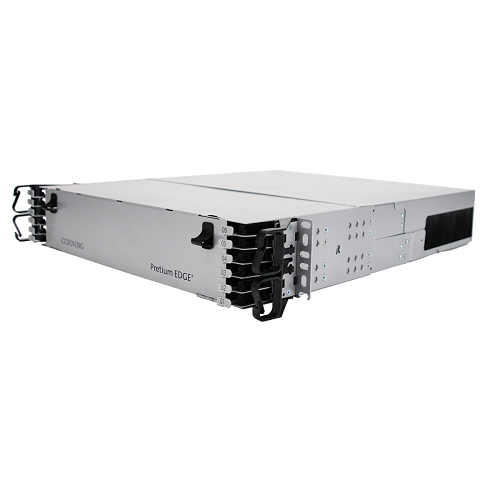

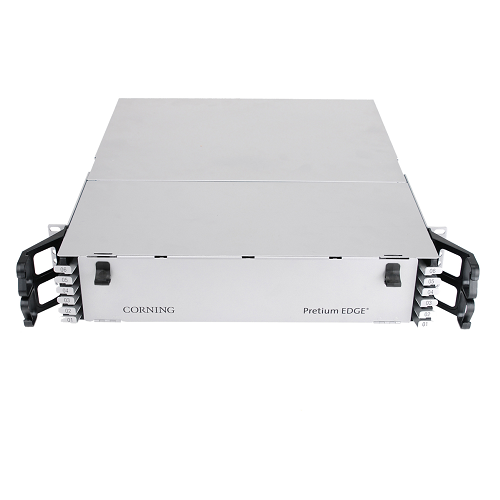

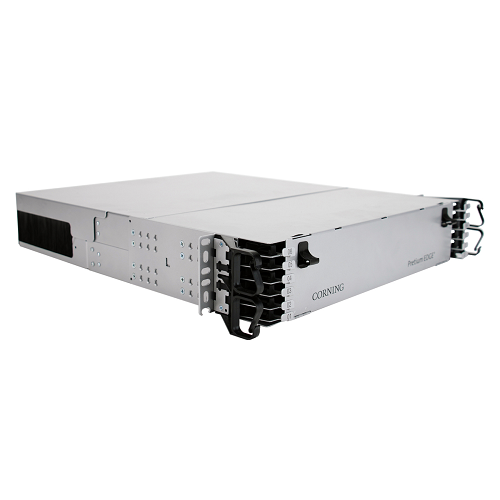

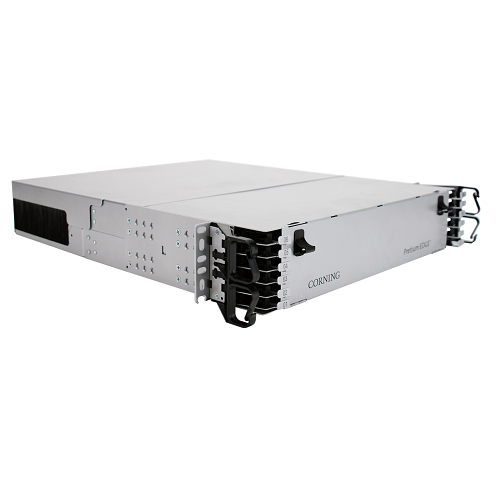

EDGE Housing 2 Rack unit holds up to 24 EDGE Modules or panels. EDGE-02U
Description:
EDGE housings are high-density, pre-terminated fiber optic hardware solutions. They offer industry-leading connector density and easy finger/toolless access to enable faster moves, adds, and changes (MACs). The units can be configured to accommodate 96, 144, 288, or 576 fibers.
EDGE housings can be rack- or cabinet-mounted and are ideal for data centers, local area network (LAN) and storage area network (SAN) applications, as well as enterprise networks.
Download PDF Spec Sheet
