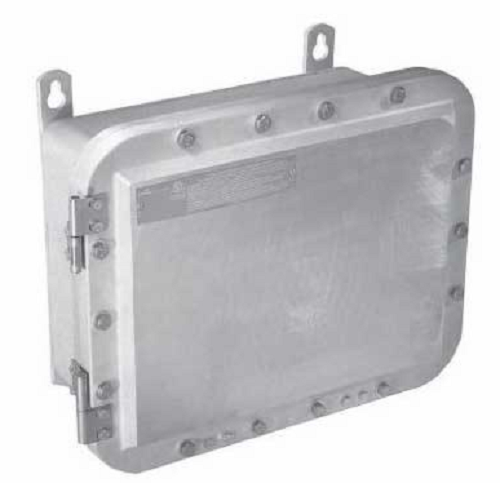

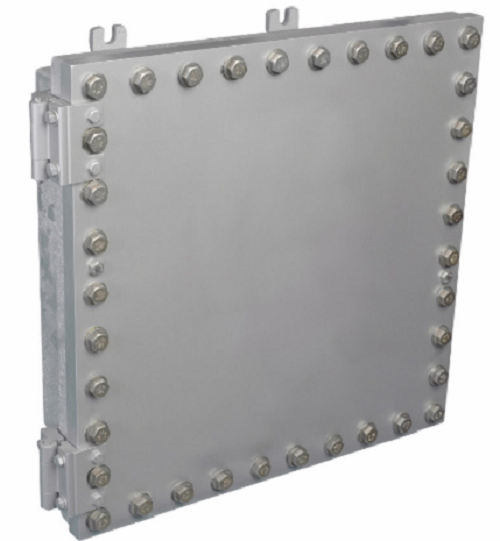

Eaton Crouse-hinds Series Ejb Junction Box, 18" X 12" X 8", Without Hinge, Copper-free Aluminum, Style C - EJB181208

Product Information

Specification

EATON CROUSE-HINDS SERIES EJB JUNCTION BOX, 18" X 12" X 8", WITH HINGE, COPPER-FREE ALUMINUM, HINGES MOUNTED ON LEFT SIDE, STYLE C - EJB181208

Description:

Eaton Junction Box, Style C Explosionproof, Series: EJB, 23-5/16 in Width, 10-7/8 in Depth, NEMA 3/4/7/9 NEMA Rating, Lock: Cover Bolt, Detachable Feet Mounting, Copper-Free Aluminum, Natural, Gray

Key Features:

1. Ground joint cover opening provides maximum opening for pulling wires or mounting equipment
2. Walls of enclosure may be drilled and tapped for conduit entries
3. External flange design - wide unobstructed cover opening provides a completely accessible interior for wiring and electrical equipment
4. Square corners of enclosure body provide maximum interior space and area for conduit openings
5. Flat cover provides maximum space for mounting a greater number of control devices
6. Internal grounding lug provides a means to ground enclosed equipment
7. Special neoprene cover gasket provides a watertight seal to meet ul type 4 (NEMA 4) requirements and provides superior protection for enclosed equipment against water/corrosion
8. Stainless steel cover bolts provide superior corrosion protection
9. Enclosure is machined for field installed mounting plates
10. Detachable mounting channels provide mounting flexibility, no need to replace enclosure if mounting channel is broken
11. Aluminum hinges provide convenient and easy access for inspection, maintenance and systems changes
12. Safety chain attached to body and cover prevents accidental damage to hinges
13. Captive triple lead quick release hex head stainless steel bolts
14. Explosionproof, dust-ignitionproof and raintight
15. Without hinge
