| Type | Dynamometer Force Gauge |
|---|---|
| UPC | 811490010024 |
| Lever Tip Style | Flat |
| Tip Width | 0.104" |
| Tip Thickness | 0.0335" |
| Dial Diameter | 1 1/2" |
| Accuracy | +- 1 g |
| Graduation | 1.00 g |
| Max Capacity | 50 g |
| Range | 10-50 g |
| Dimensions | 3.75 in x 1.63 in x 1.13 in |
| Part Number | GD-5 |
Description:

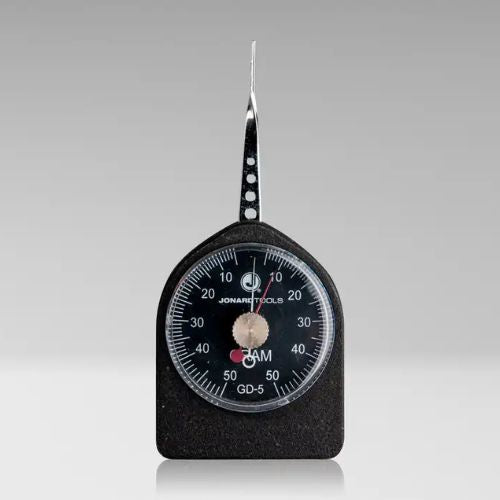

Jonard Tools Dial Force Gauges—also called Dynamometer or Tension Gauges—combine ergonomic design with industry-standard precision in force measurement.
Features:

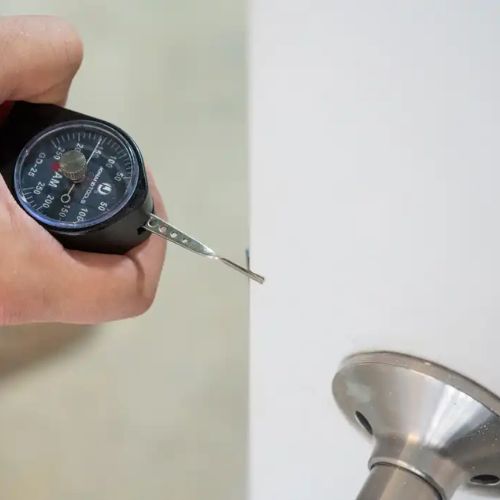

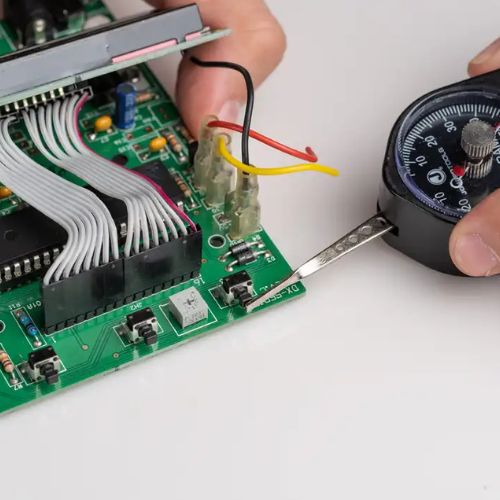

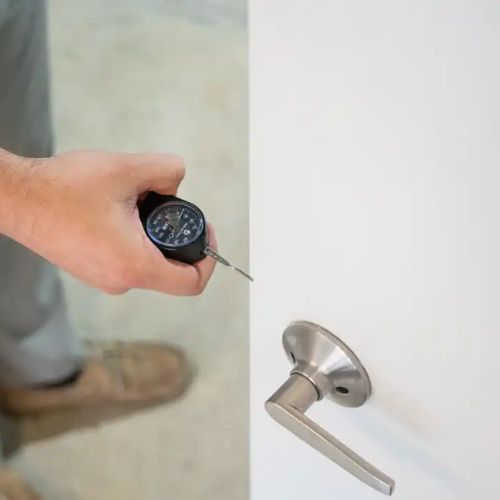

⦿ Simple measurements: place the gauge arm perpendicular to the force being measured
⦿ Readings can be taken in both clockwise and counterclockwise directions
⦿ Durable measuring springs made of hard-tempered, annealed beryllium copper
⦿ Features a maximum reading pointer and flat tip; dial diameter 1½ inches
⦿ High-precision, rugged construction for long-lasting use
⦿ Specifications: Accuracy ±1 g; Graduation 1 g; Range 10–50 g; Maximum capacity 50 g
