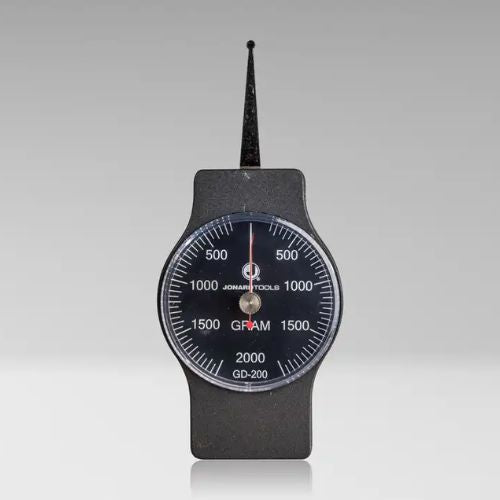

Dynamometer Force Gauge (300-2000 grams) GD-200
Where are we? 4 Continents 9 Countries
Product Information
Specification
Type
Dynamometer Force Gauge
UPC
811490010093
Lever Tip Style
Round
Tip Diameter
0.140"
Tip Thickness
0.0622"
Dial Diameter
2 1/2"
Accuracy
+- 50 g
Graduation
50.00 g
Max Capacity
2000 g
Range
300-2000 g
Dimensions
6.25 in x 2.75 in x 1.38 in
Part Number
GD-200
Dynamometer Force Gauge (300-2000 grams)
Description: Jonard Tools’ Dial Force Gauges—also known as dynamometer or tension gauges—feature ergonomic designs and are recognized as the industry standard for force measurement.Features: ⦿ Simple, perpendicular force measurements ⦿ Dual-direction readings (clockwise and counterclockwise) ⦿ Hard-tempered, annealed beryllium-copper measuring springs ⦿ Durable gauge design with maximum-reading pointer ⦿ Rounded-tip gauge with a 2.5-inch dial ⦿ High-precision, long-lasting performance ⦿ 50-gram accuracy with 50-gram graduations ⦿ Measurement range: 300–2000 grams ⦿ Maximum capacity: 2000 grams
