Data Center Electrical Utility Kit TK-DC02
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Electrical Utility Kit |
| UPC | 810215350551 |
| Data Center Type | Traditional (Edge, Enterprise, Colocation), Hyperscale (Cloud, Large-Scale), AI Network (Campus/GPU Clusters) |
| Environment Type | All Environments (Inside Plant (ISP), Outside Plant to Inside Plant (OSP-to-ISP) & Outside Plant (OSP) |
| Solutions Focus | Operations & Power |
| Lifecycle Phase | All Phases (Prep & Install, Testing & Commission, Repair & Maintenance) |
| Capabilities | Bend, crimp, cut, drive, electrical testing, grip, illuminate, pull, strip, store & carry, terminate |
| Crimping Capabilities | Insulated butt connectors, telephone spade lugs, open barrel connectors, and non-insulated lugs/terminals |
| Cutting Capabilities | Side-Cut: Live Wire (up to 1000V) & high-strength wire, bolts, nails; Flush Cut: Live Wire (up to 1000V) & high-strength wire, bolts, nails; Diagonal Cut: Live Wire (up to 1000V) |
| Driver Specs | Live Circuits (up to 1000V): Phillips: #1 x 3"", #2 x 4"", #3 x 6"" Cabinet Slotted: 5/32"" x 4"", 1/4"" x 6"", 5/16"" x 7" |
| Electrical Testing Capabilities | DC/AC Current, DC/AC Voltage, Resistance, Capacitance, Temperature, Continuity/Diode, up to 2500V & 999.9A |
| Illuminating Capabilities | 250-1500 lm, 4-8 hrs |
| Pulling & Gripping Capabilities | Steel Fishtape: 1/8-1/4" (3.18-6.35 mm) Live wire (up to 1000V) & general materials |
| Stripping Capabilities | Round cable: 3/16-1-1/8" (4.76-28.58 mm) diameter Wire: 10-30 AWG (2.6-0.5 mm) solid or stranded Live Wire (up to 1000V): 8-30 AWG (3.26-0.25 mm) solid or stranded |
| Terminating Capabilities | Ring, Fork, Spade & Butt-Splice, 10-22 AWG (2.6- 0.64 mm) |
| Removal Capabilities | Slit : PVC, Rubber, PE Spiral: PVC, Rubber, PE Ring: PVC, Rubber, PE Strip: PVC, Rubber, PE |
| Part Number | TK-DC02 |
Data Center Electrical Utility Kit
Description:
The Jonard Tools TK-DC02 is a purpose-built electrical termination and power distribution kit designed for technicians installing, connecting, and maintaining power infrastructure in and around modern data center facilities. It is suited for a wide range of environments, including edge and enterprise data centers, hyperscale facilities, colocation sites, and AI infrastructure.
Features:

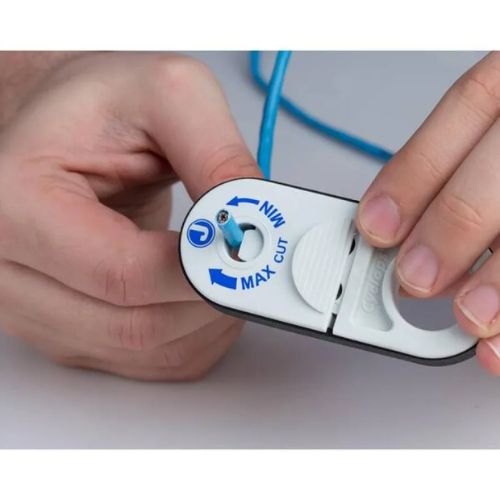

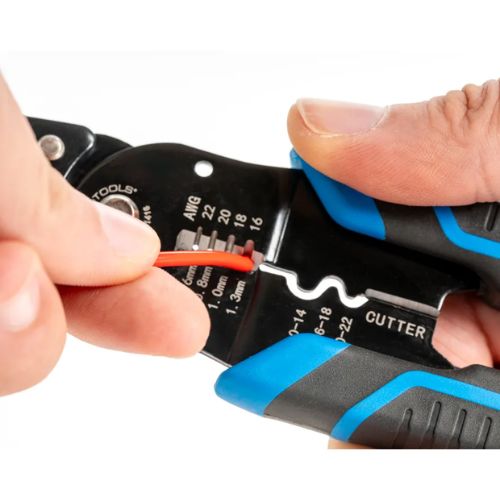

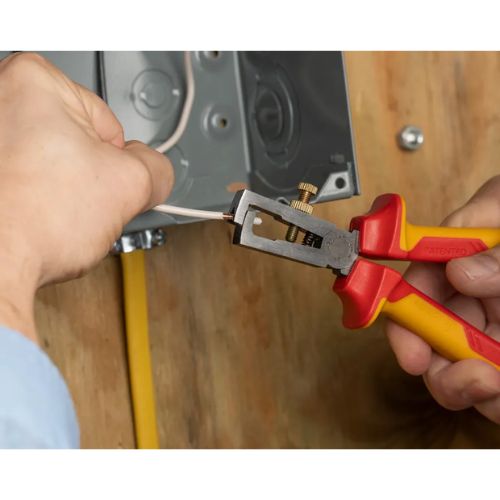

⦿ Strip and prepare wires across a wide range of gauges: The CST-1900 handles round cables from 3/16" to 1-1/8", while the JIC-2030 supports 20–30 AWG signal wires, the WSS-1020 covers 10–20 AWG, and the INP-4065 enables live-wire stripping across 8–30 AWG.

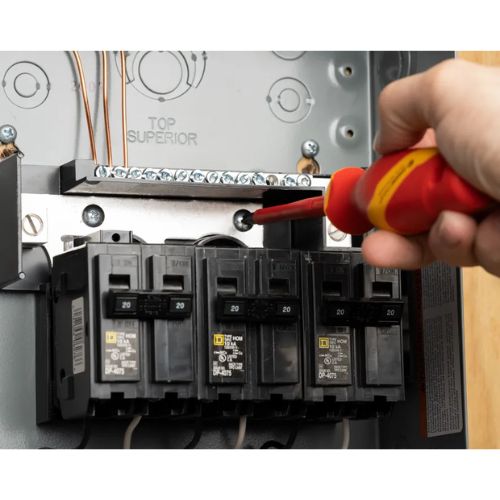

⦿ Work safely in live and mixed-voltage environments: A comprehensive insulated tool set includes the INP-1072 combination plier, INP-2065 long-nose plier, INP-3062 diagonal plier, and a complete range of insulated Phillips and slotted screwdrivers, including INS-180, INS-2100, INS-3150, INS-4100, INS-475, INS-6150, and INS-8175.
⦿ Pull, route, and manage wires through tight pathways: The JIC-685 lineman’s pliers feature an integrated fish-tape puller and crimper, helping technicians manage wiring from conduit entry through final termination.

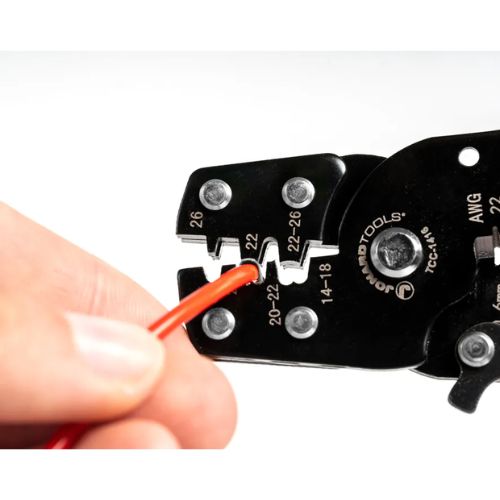

⦿ Crimp and terminate connections with confidence: The TCC-1416 electric lug and terminal crimper, combined with the TCK-178 solderless ring and lug terminal kit, provides reliable solutions for power distribution connections at panels, PDUs, and service entrance points.
⦿ Measure AC and DC circuits accurately: The ACM-1500DC Solar+ CAT III 1500V clamp meter is designed for electrical verification across generator feeds, solar arrays, and data center power infrastructure.
⦿ Stay organized and productive on large sites: The SOL-F1 rechargeable tactical flashlight provides dependable illumination for low-light work areas, while the BP-100 heavy-duty technician backpack keeps the complete tool kit organized and easily accessible across multi-building deployments.
