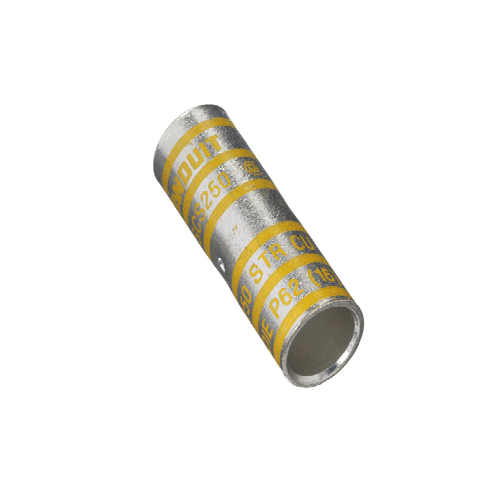

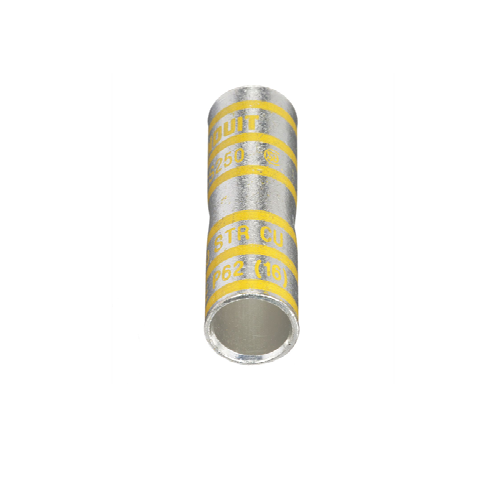

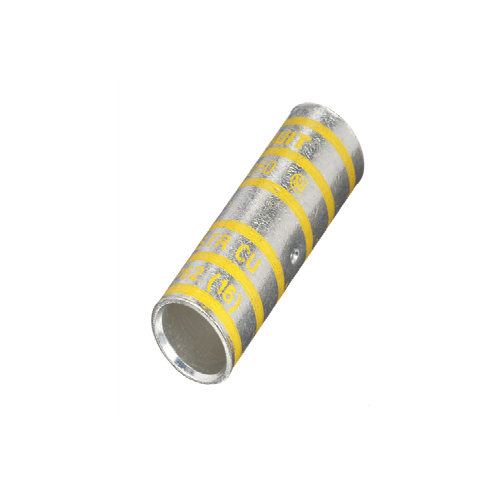

Compression Splice Tin-Plated Copper Standard Yellow SCS250-X (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The Compression Splice Tin-Plated Copper Standard Yellow SCS250-X is a premium-grade electrical connector designed to ensure secure and efficient connections in various electrical applications. Crafted from high-quality tin-plated copper, this splice offers exceptional conductivity and corrosion resistance, ensuring long-term reliability even in demanding environments.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 250 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL LISTED FOR APPLICATIONS UP TO 35KV, FILE E52164,CSA CERTIFIED FOR APPLICATIONS UP TO 600V |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Burndy Die Index Number | 16 |
| Panduit Die Index Number | P62 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Wire Strip Length (In.) | 1.0625 |
| Wire Strip Length (mm) | 27 |
| UL Temperature Rating (°C) | 90 |
