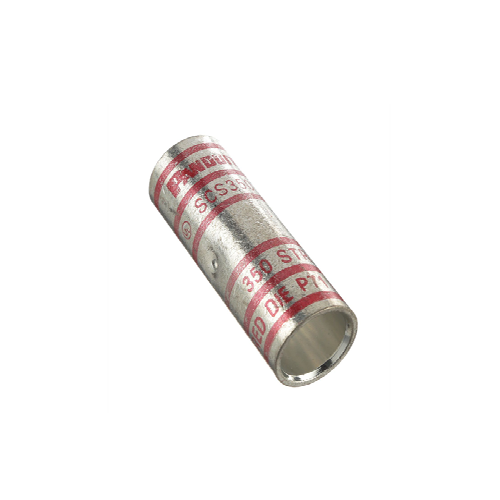

Compression Splice Tin-Plated Copper Standard Red SCS350-X (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The Compression Splice Tin-Plated Copper Standard White SCS350-X is an essential component for electrical connections, engineered with precision and durability in mind. Crafted from high-quality tin-plated copper, this splice ensures excellent conductivity and corrosion resistance, making it ideal for a wide range of applications in electrical systems.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 350 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Burndy Die Index Number | 18 |
| Panduit Die Index Number | P71 |
| Overall Length (In.) | 2.37 |
| Overall Length (mm) | 60.2 |
| Wire Strip Length (In.) | 1.125 |
| Wire Strip Length (mm) | 28.6 |
| UL Temperature Rating (°C) | 90 |
