Comp Lug Flex 650 Tin Plt Copper Strt Two 1/2" Stud Pan-Lug LCCX650-12-6 (Pack of 6)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Inside Diameter (In.) | 1.05 |
| Inside Diameter (mm) | 26.67 |
| Outer Diameter (In.) | 1.35 |
| Outer Diameter (mm) | 34.29 |
| Product Type | Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| DLO Copper Flex Conductor Size (kcmil) | 646.4 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Long Barrel with Inspection Window |
| Barrel Length (In.) | 2.94 |
| Barrel Length (mm) | 74.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.95 |
| Tongue Width (mm) | 49.5 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.3 |
| Tongue Thickness (mm) | 7.6 |
| Overall Length (In.) | 6.75 |
| Overall Length (mm) | 171.5 |
| Finish/Coating | Tin-Plated |
| Standards Met | C22.2 No. 65-13, 486A-486B File #E52164 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Black |
| Panduit Die Index Number | P106 |
| Burndy Die Index Number | 24 |
| T & B Die Index Number | 24 |
| Wire Strip Length (In.) | 3 |
| Wire Strip Length (mm) | 76.2 |
| Part No | LCCX650-12-6 |

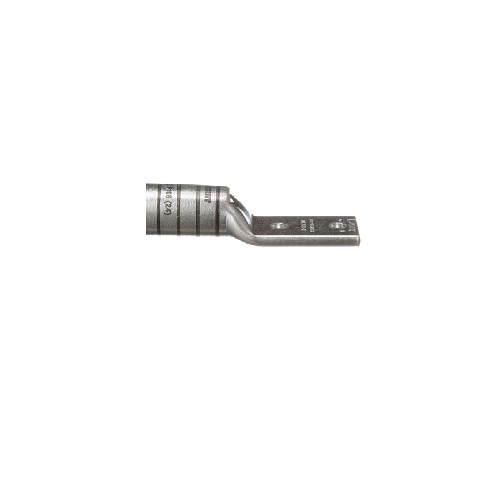

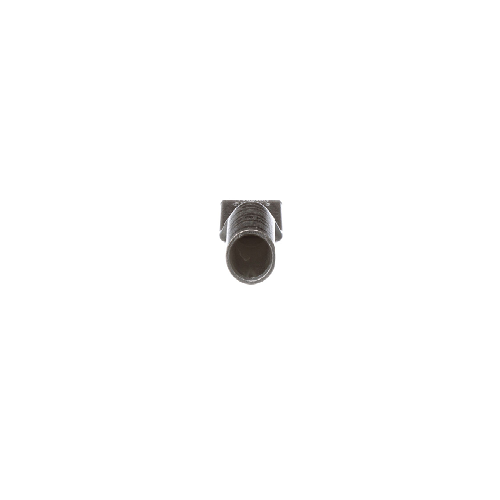

Comp Lug Flex 650 Tin Plt Copper Strt Two 1/2" Stud Pan-Lug LCCX650-12-6
DESCRIPTION :
The LCCX650-12-6 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel.
FEATURES :
⦿ Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
