Certified 100 PSI Manometer

Product Information

Specification

About:

• Ideal for measuring low differential pressure in clean rooms, test and balance, medical equipment, HVAC, pneumatic systems, and computer peripherals.
• All read gauge, and differential pressure in up to 11 units of measure and feature large, backlit displays, min/max, hold, and auto power off functions.

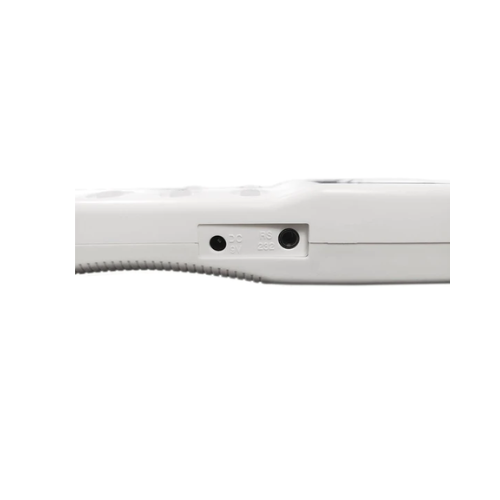

• The USB output port enables communication with a computer.
• High accuracy of ±0.3% FS @25ºC, repeatability: ±0.2% (max ±0.5%) FSO, and combined linearity and hysteresis: ±0.2 (Max ±1.0%) FSO.
• To connect this model to a computer to stream data, you will need the USB Cable 840054 Data Acquisition Software 840052.

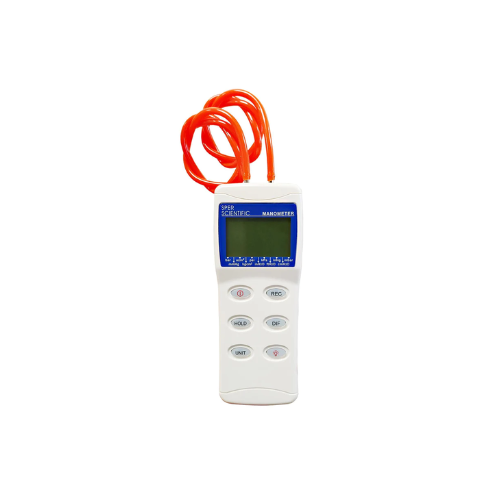

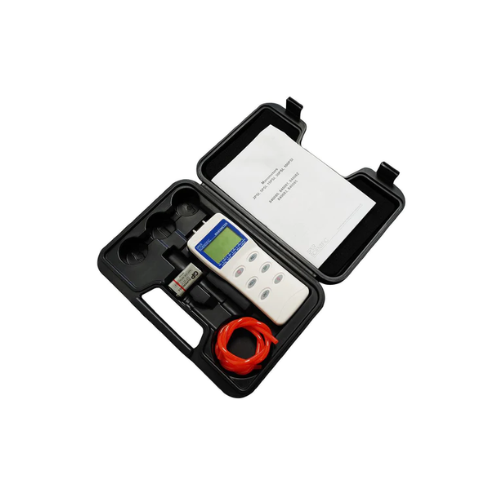

• All Sper Scientific Manometers come ready to use with connection hose, instructions, and a 9V battery, in a hard shell carrying case.

Also Known as:

Sper Scientific Manometer, Certified Manometers, 100 PSI Manometer, Sper Scientific 840083C.

Specification:

	Range	Resolution
PSI	100	0.01
In H²O	2768	1
kPa	684	0.1
Ft H²O	231	0.1
In Hg	203.6	0.1
Cm H²0 (840085 is in mmH²O)	7030	1
mbar	6895	1
Bar	6.89	0.001
mm of Hg	5170	1
Oz Inch²	1600	1
Kg cm²	7.03	0.001
Max pressure	150 PSI
