CATV Female Splice Adapters RG-F81 (Pack of 20)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | CATV Female Splice Adapters |
| UPC | 810053351703 |
| Vibration | 100 m/s² (10～500Hz) |
| Impedence | 75 Ω |
| Frequency Range | DC～1GHz |
| Working Voltage | 170V |
| Connector Type | F Female Splice Adapter |
| Withstand Voltage | 500V |
| Center Contact Res. | ≤ 10 mΩ |
| Standards | IEC 60169-24 |
| Temperature Range | -40～+85℃ |
| Outer Contact Res. | ≤ 5 mΩ |
| Insulation Res. | ≥ 1000 MΩ |
| Return Loss | ≥ 25dB |
| Insertion Loss | ≤ 0.8 dB |
| Part Number | RG-F81 |

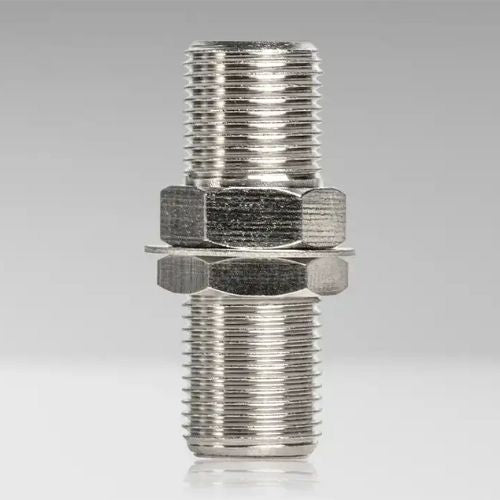

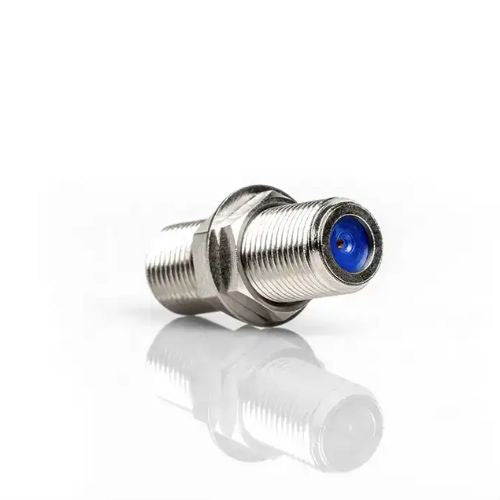

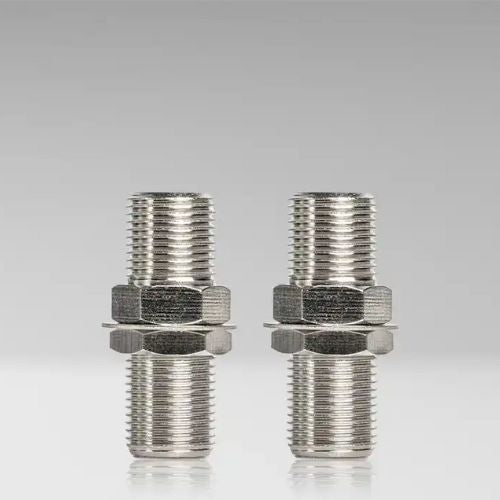

CATV Female Splice Adapters (Pack of 20)
Description:

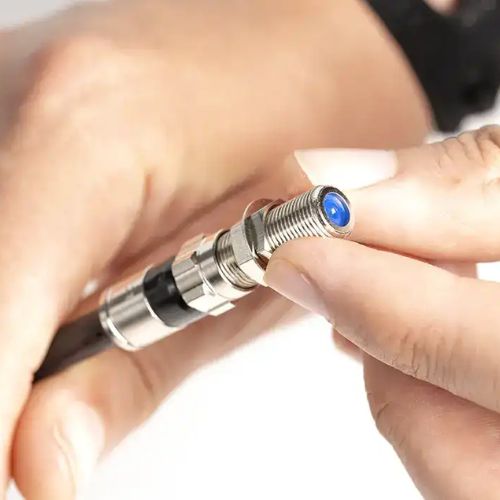

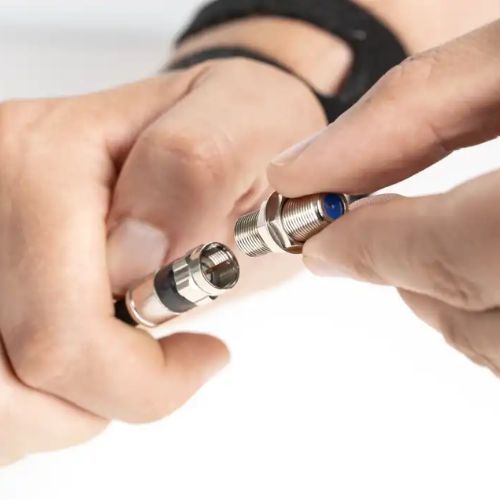

These adapters are designed to connect two male RG6, RG6 Quad Shield, RG59, or RG59 Quad Shield CATV F connectors, supporting performance up to 3.0 GHz with gold-plated contacts for optimal signal quality.
Features:
• Supports performance up to 3.0 GHz
• Gold-plated contacts ensure optimal signal quality
• Compatible with male RG6, RG6 Quad Shield, RG59, and RG59 Quad Shield CATV F connectors
Download PDF Spec Sheet
