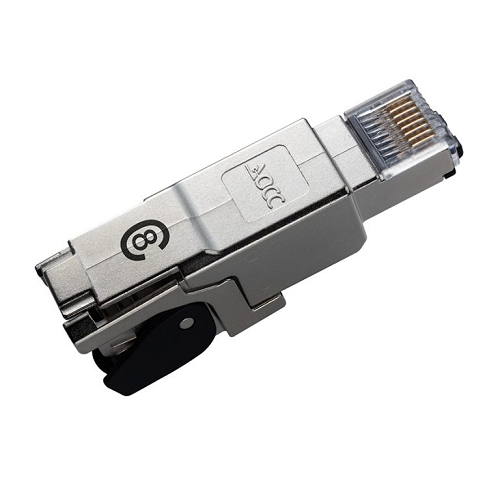

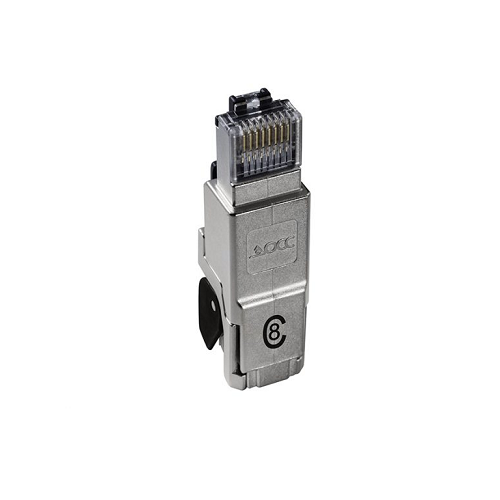

Category 8 Shielded Field Terminable Plug OCCSFP8

Product Information

Specification

DESCRIPTION:

Category 8 field terminable plug is simple to terminate with no specialized tools required and supports high performance 40 Gigabit networks. Termination is accomplished by simply inserting the conductors into the wire manager, squeezing the wire manager to terminate the conductors and inserting wire manager into the plug housing. All eight conductors are simultaneously terminated when the wire manager is squeezed. This process ensures consistent, reliable terminations.

APPLICATIONS:

• Data Center Direct Attach Cable Assemblies
• HDMI/HDBASET Cable Assemblies
• Wireless Access Points
• IP Security Cameras
• IP Access Control
• IP Audio
• Building Automation Devices
• Transition Cables

FEATURES:

• ANSI/TIA-568-C.2-1 Category 8
• IEC 60603-7-41
• Supports IEEE 802.3bq 40GBASE-T
• Supports IEEE 802.3at POE+ (and forthcoming 802.3bt POE++)
• Accommodates 22-24 AWG conductors
• Modular Interface: 750 mating cycles
• 1000 VDC Dielectric Withstand
• Current Rating (50°C): 1A
• 500MΩ Insulation resistance
• Temperature range: -40°C to 70°C
• UL 1863 Communications Circuit Accessories
• UL 2043 Certification for use in Air Handling Spaces
