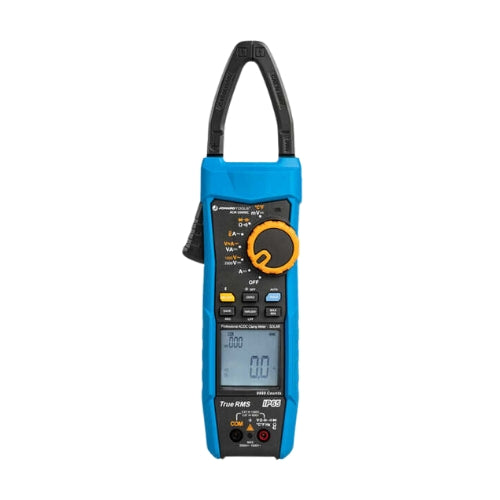

CAT III 1500 V Solar+ Clamp Meter ACM-1500DC

Product Information

Specification

Description

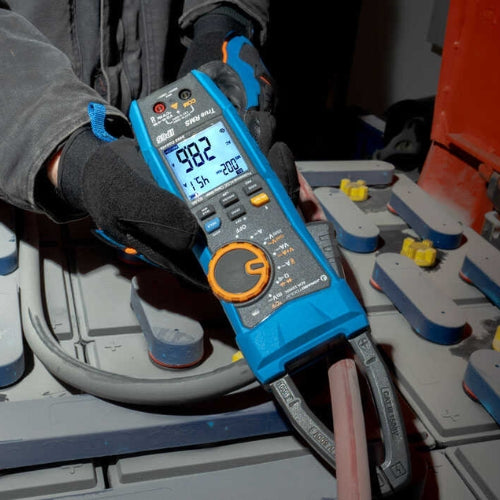

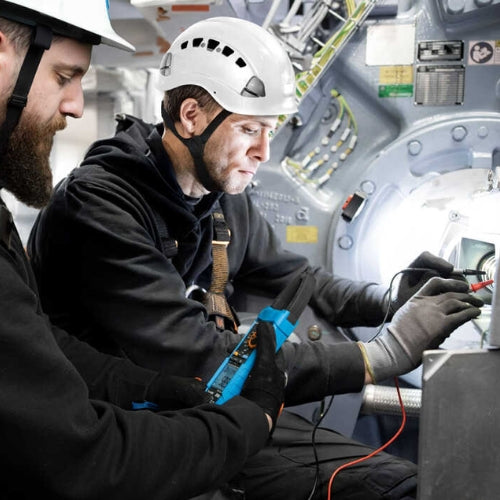

Elevate your high-voltage DC work with the Jonard ACM-1500DC CAT III 1500 V True-RMS Clamp Meter. This versatile device is tailor-made for professionals working in solar arrays, wind power farms, electric railways, data centers, and uninterruptible power supplies. It excels in precision, measuring up to 2500 V DC, 1500 V AC, and 999.9 A DC or AC through the clamp jaws. The slim jaw design ensures access to even the most congested combiner boxes, and the test leads are CAT III 1500 V DC rated for peace of mind.

Features

• Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws
• CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks

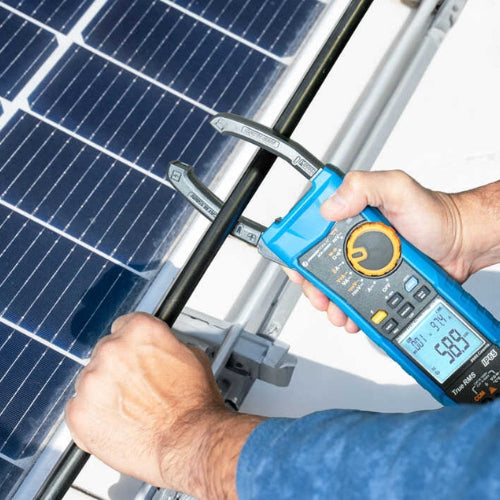

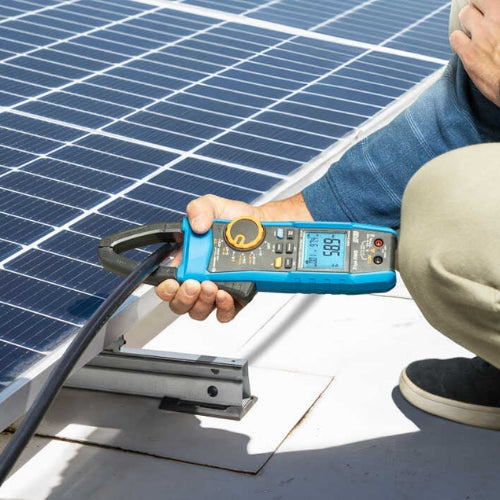

• Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38” (35 mm) in
diameter
• Test results can be saved onto onboard storage and transferred via Bluetooth
• IP 54 rating for dust and water resistance for ultimate protection while working outdoors

Specification

Overvoltage Category: CAT III 1500V/CAT IV 600V
Max AC Current: 999.9 A
Max DC Current: 999.9 A
Max AC Voltage: 1500 V
Max DC Voltage: 2500 V
Power (DC): 999.9 kVA/2500 kVA
Capacitance: 100.0 uF/1000 uF

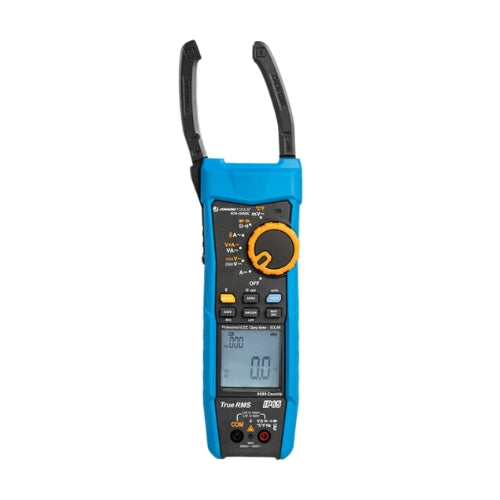

Jaw Opening: 35 mm
Bluetooth App: BT 5.0
Dimensions: 12.25 in x 5.2 in x 2.5 in
UPC: 810132435454
