Cable & Wire Ties Mounts & Straps Connector Ring Black SACS50-T100 (Pack Of 2000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

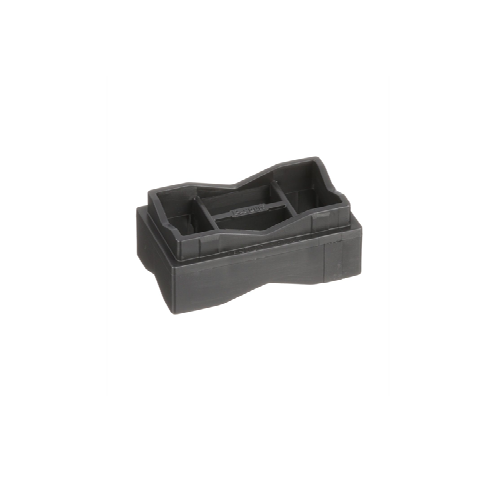

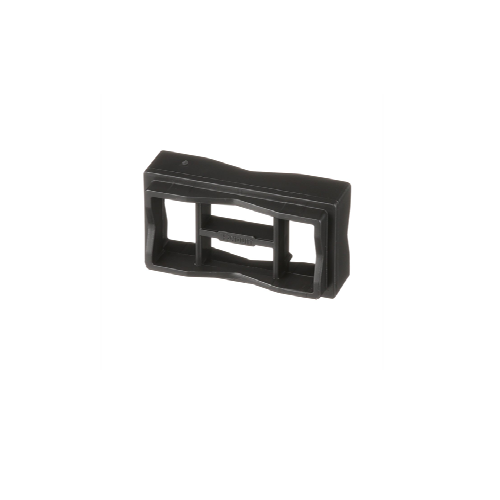

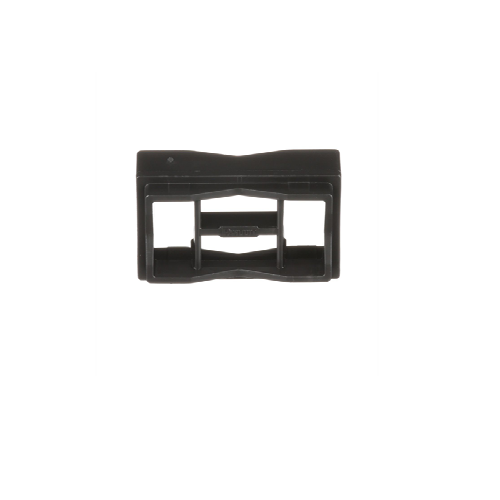

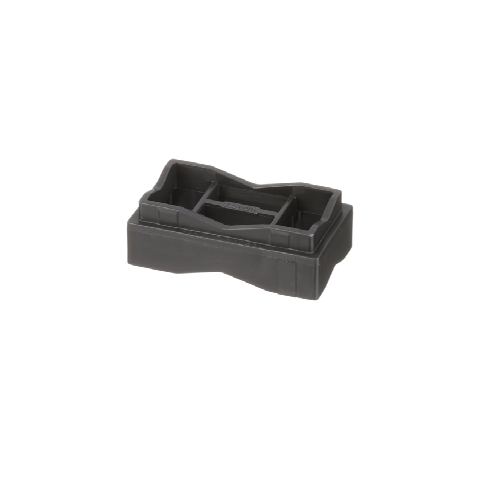

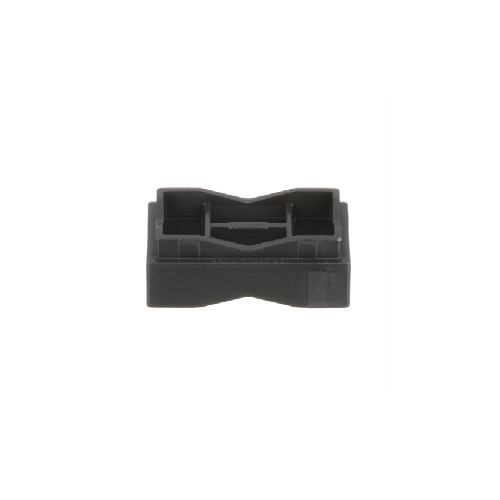

Panduit SACS50-T100 Stackable Aerial Cable Spacers are designed to snap into another to increase spacer heights by ½” increments. Can be used in parallel or perpendicular applications. Are 2.08” x 1.16” x 0.51” (52.8 x 29.5 x 13.0 mm) in size and for use with Panduit Dura-Ty™ Cable Ties. Made of Weather Resistant Polypropylene and have high resistance to damage caused by UV light. For outdoor environments.
Specification :
| Application | Use in Parallel or Perpendicular Applications for Resistance to Damage Caused by Ultraviolet Light –indoor or Outdoor |
| Product Type | Cable Spacer |
| Color | Black |
| Environment | Indoor/Outdoor |
| Sub Brand | Dura-Ty |
| For Use With | Cable Ties: LH, H, EH |
| Material | Polypropylene |
| Maximum Installation Temperature (°C) | 115 |
| Maximum Installation Temperature (°F) | 239 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Height (In.) | 0.51 |
| Overall Height (mm) | 13 |
| Overall Length (In.) | 2.08 |
| Overall Length (mm) | 52.8 |
| Overall Width (In.) | 1.16 |
| Overall Width (mm) | 29.5 |
| Resistance Properties | Weather-Resistant |
| Standards Met | RoHS Compliant. |
| Mount Method | Cable Tie |
Download PDF Spec Sheet
