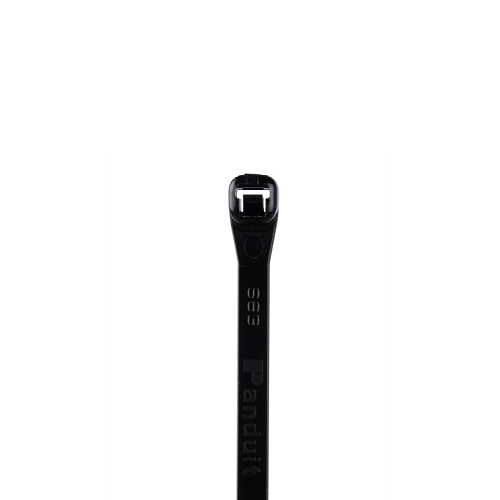

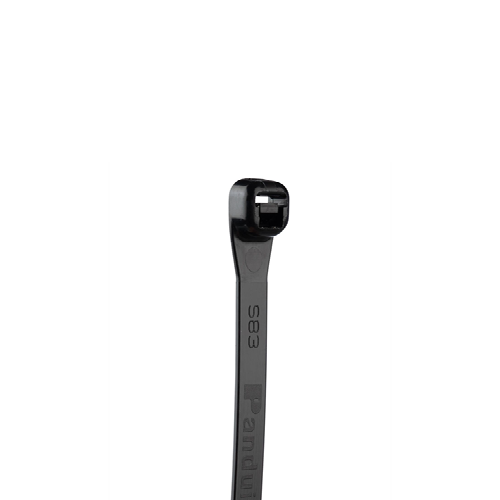

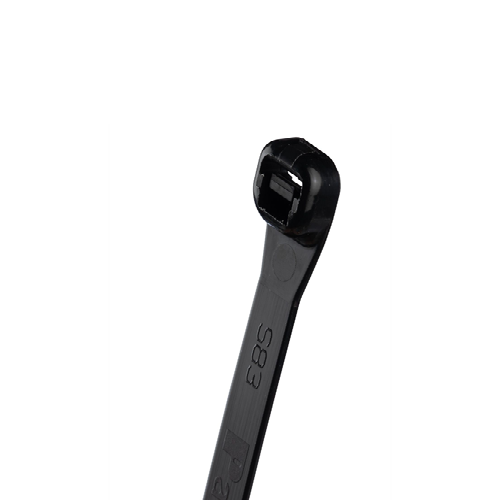

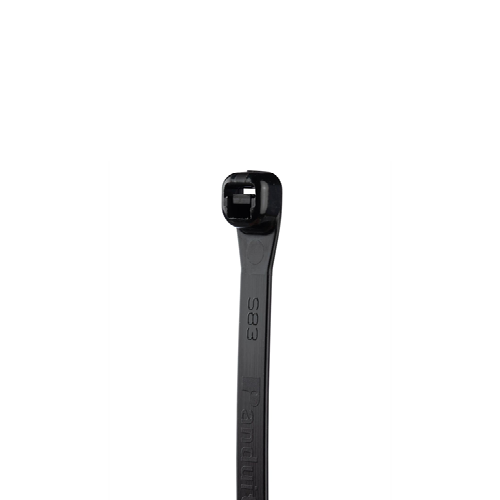

Cable Tie SG Series Miniature Cross Section Black SG150I-M0 (Pack Of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Super-Grip Cable Ties are designed with high strength and flexibility to tightly grip bundles and resist lateral movement despite the rough conditions of MRO and construction environments. Plus, with weather-resistant Nylon 6.6 material, it's ideal for intense UV environments. Intermediate cross section, 6.2in, Tensile Strength: 178, black.
Specification :
| Product Type | Cable Tie |
| Sub Brand | Super-Grip |
| Color | Black |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 6.2 |
| Overall Length (mm) | 157 |
| Body Width (In.) | 0.168 |
| Body Width (mm) | 4.3 |
| Body Thickness (In.) | 0.04 |
| Body Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 1.5 |
| Maximum Bundle Diameter (mm) | 38.1 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | 70 |
| Minimum Installation Temperature (°F) | -40 |
| Standards Met | CSA Certified, UL Listed (File #E56854), RoHS Compliant |
| For Use With | GTS-E, GS2B, PTS, PPTS, STS2 |
| Application | General |
Features :
• High grip strength, Thin, wide strap body, Distinctive flared neck, Strong wedge and hinge, Tapered tip, Agressive tip grips
