Cable Tie Mount Screw-On Super-Grip Natural SGTM2S8-C (Pack Of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

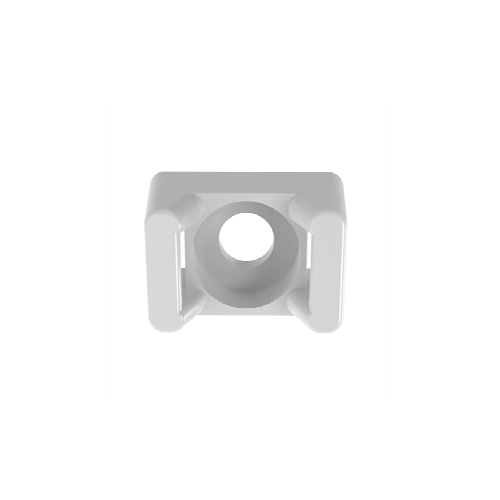

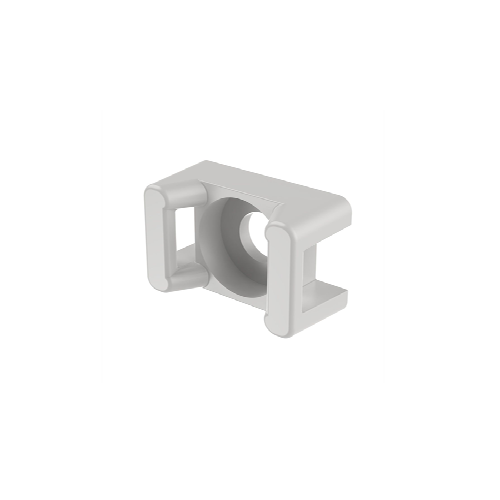

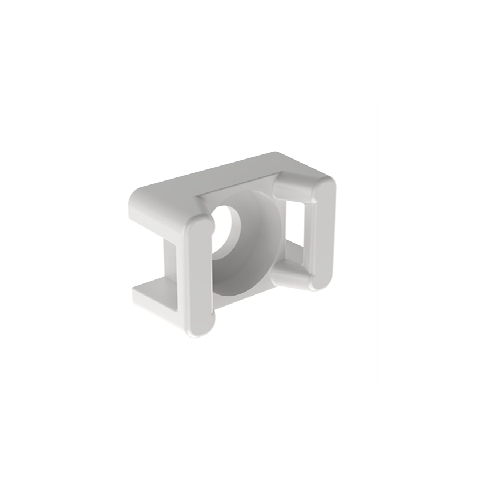

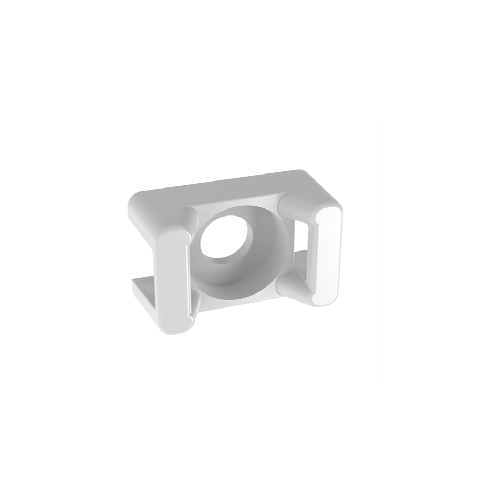

The cable tie mount is natural color and is applied with a #8 (M4) screw. It is 0.66" (16.7mm) long and made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It is used with cable ties Super-Grip miniature, Super-Grip intermediate, and Super-Grip standard adhesive backed cable tie mounts.
Specification :
| Application | Super-Grip Cable Ties and Mounts are Designed to Withstand Rough Installation Practices that Occur in MRO and Construction Project |
| Note | For use with Super-Grip cable ties |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (N) | 334 |
| Minimum Loop Tensile Strength (lb) | 75 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #8 |
| Overall Height (In.) | 0.34 |
| Overall Height (mm) | 8.6 |
| Overall Length (In.) | 0.66 |
| Overall Length (mm) | 16.7 |
| Overall Width (In.) | 0.48 |
| Overall Width (mm) | 12.2 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| Sub Brand | Super-Grip |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Download PDF Spec Sheet
