Cable Tie Mount Screw-On Super-Grip Black SGTM3S10-C0 (Pack Of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

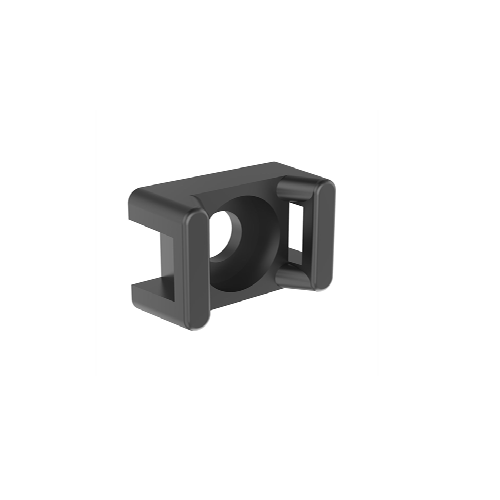

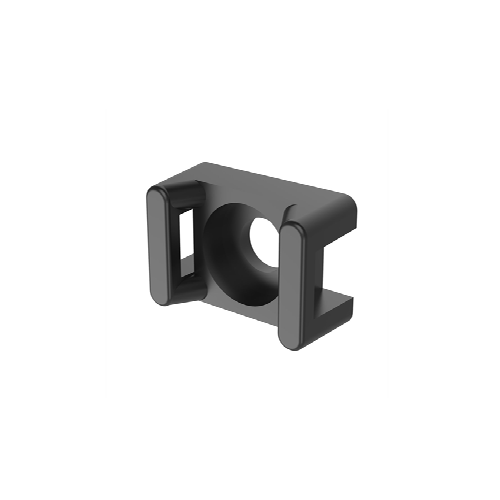

The Panduit SGTM3S10-C0 Super Grip Screw Applied Cable Tie Mounts have a unique cradle design that provides maximum stability and a low profile design that keeps bundles close to the mounting surface. Designed for use in outdoor environments and with miniature, through light-heavy cable ties. They are 0.91” x 0.61” x 0.43 (23.1 x 15.4 x 11.0 mm) in size and require a #10 (M5) screw for application. Made of Weather Resistant Nylon 6.6, are black in color.
Specification :
| Application | Super-Grip Cable Ties and Mounts are Designed to Withstand Rough Installation Practices that Occur in MRO and Construction Project |
| Product Type | Cable Tie Mount |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #10 |
| Overall Height (In.) | 0.43 |
| Overall Height (mm) | 10.9 |
| Overall Length (In.) | 0.91 |
| Overall Length (mm) | 23.1 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.4 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant,RoHS Compliant |
| Sub Brand | Super-Grip |
| For Use With | Super-Grip Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
Download PDF Spec Sheet
