Cable Tie Mount Natural PA6.6 Screw RAMH-S6-D (Pack of 500)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Right Angle Mounts Holds Cable Bundles Away from the Sharp Edges of Bulkheads or Cabinet Holes. Can Also be used to Mount Cable Bundles Adjacent to Any Surface |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 1 |
| Overall Height (mm) | 25.4 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant,UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| Part No | RAMH-S6-D |
Cable Tie Mount Natural PA6.6 Screw RAMH-S6-D (Pack of 500)
DESCRIPTION :

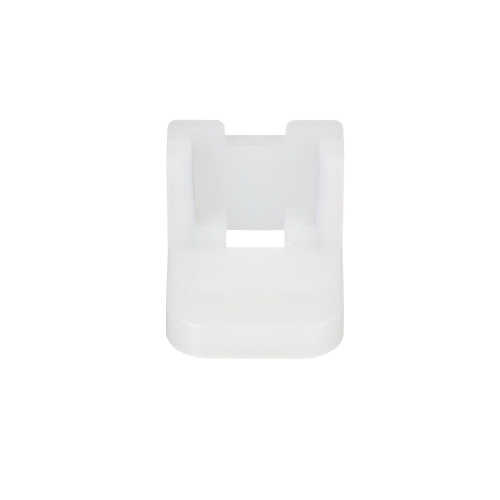

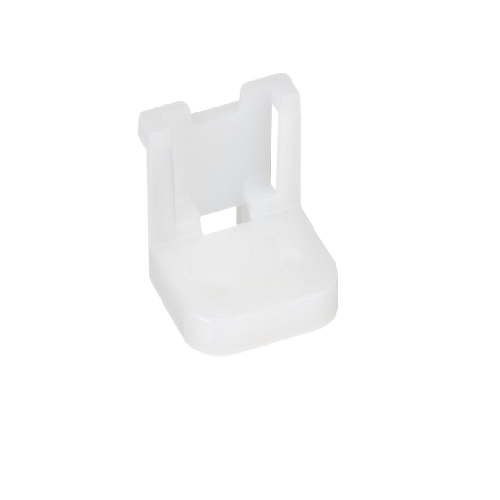

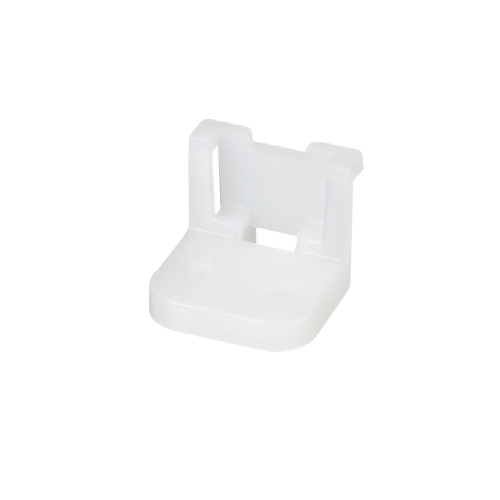

Panduit RAMH-S6-D Right Angle Cable Mounts hold cable bundles away from the sharp edges of bulkheads or cabinet holes. They can also be used to mount cable bundles adjacent to any surface. Mounts are 1” x .75” x 1” (25.4 x 19.1 x 25.4 mm) in size and designed for use in indoor environments. Apply with a #6 (M3) Screw or 1/8 (3.2) rivet. Made of Nylon 6.6, are natural in color
Download PDF Spec Sheet
