Product Information
Specification
| Product Type | Fittings |

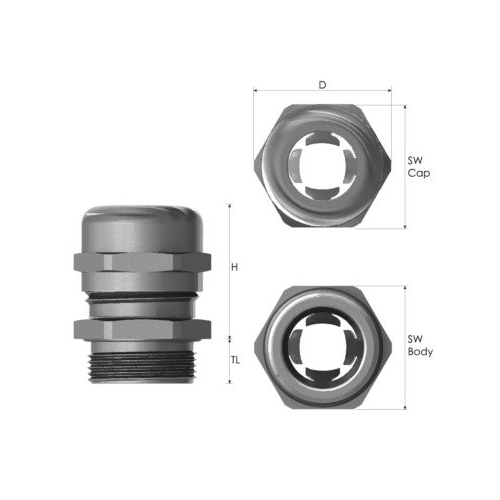

| Clamping range D | 22 mm – 32 mm |
| Clamping range D | 0.866 inch – 1.26 inch |
| Temperature Range | -20 °C … +100 °C |
| Intermittent Temperature Range | -40 °C … +150 °C |
| Degree of Protection | IP68 |
|
Material |
Brass Nickel-plated |
| Material Seal | CR Chloroprene Rubber |
| Surface | Nickel-plated |
| Part No | FMNPT114-CV |

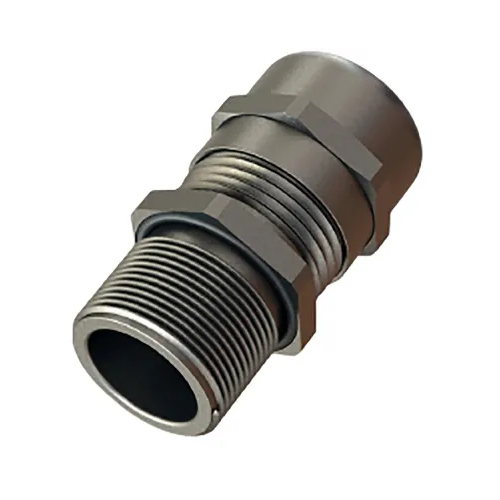

Cable Fittings And Accessories FMNPT114-CV
Description:
Cable Fittings and Accessories Metal EMC
Properties:
⦿ Adapts to different size cable shields
⦿ 360° vibration proof shield termination
⦿ Integrated strain relief
⦿ Wide sealing and clamping range
⦿ Updated design for easy installation
⦿ Easy insertion of the cable from either end of the fitting
⦿ Low contact resistance due to large alloy copper contacts
⦿ Manufactured acc. to EN 62444
