Breakout Series Ultra-Fox 12 Strand 2.5mm PVC Single Mode Yellow MHSA Mining Cable BX012DSLA9YS
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Tensile Load | Menimum Bend Radius | |||||||
| Diameter | Weight | Installation | Operational | Installation | Long Term | |||
| Fiber Count | Fiber Type | Part Number | mm/(in) | kg/km (lbs/1,000) | N (lbs) | N (lbs) | cm (in) | cm (in) |
| 12 | SLA - SM ITU-T G.657.A1 | BX012DSLA9YS | 14.1 (0.56) |
159.0 (107.0) |
6,000 (1,350) |
2,500 (560) |
21.2 (8.3) |
14.1 (5.6) |
APPLICATIONS:
• Can be installed in locations that require compliance with MSHA’s Part 7, Subpart K of Title 30 of the Code of Federal Regulations (CFR) signal cables
• Suitable for permanent installations
• Ideal for applications that require individual connectors added to subcables
STANDARDS:
OCC's B-Series MSHA-rated cables meet the functional requirements of the following standards:
• MSHA Approved 30CFR 7.408 Signal Cables
• Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
• GR-409-CORE
• ICEA-S-104-696
• ICEA-S-83-596
• TIA-568
• TIA-598
CHARACTERISTICS:
| Characteristic | Breakout Mining Cables |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -55°C to +85°C |
| Install Temp | -10°C to +60°C |
| Flame Retardancy | MSHA- approved 30CFR 7.408 Signal Cable |
| Crush Resist | 2200 N/cm |
| Impact Resist | 1500 impacts |
| Flex Resist | 2000 cycles |
| Jacket Type | D |
FEATURES:

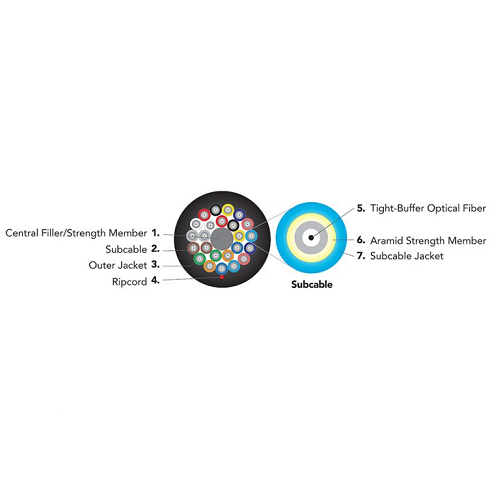

• Most rugged cable design with individual subcables for routing and direct connector termination
• Helically stranded cable core for flexibility, survival in difficult pulls, and mechanical protection for the optical fibers
• High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
• Fibers may be directly terminated using connectors, with no further protection required
• UV resistant, water and fungus resistant
• Core-LockedTM outer jacket surrounds the subcables for exceptional crush resistance, survivability, and use in long, vertical installations
• Designed for direct lashing, "J" hook applications, and vertical installations
• Cable is ideal for direct pulling with wire mesh grips
• Individual fibers and strength members protected in a subcable configuration
• Ideal configuration for multiple termination point locations where subcables provide excellent strength and mechanical protection for connector termination
• Flame retardant - MSHA approved to Part 7, Subpart K of Title 30 Code of Federal Regulations (CFR)
