| Type | BNC Female to Male Adapter |
|---|---|
| UPC | 810053351680 |
| Connector Type | F-Female to BNC-Male |
| Standards | IEC 60169-8 |
| Tempertaure Range | -25~+85℃ |
| Impedance | 75 Ω |
| Frequency Range | DC~1GHz |
| Working Voltage | 500 V |
| Withstand Voltage | 1500 V |
| Center Contact Resistance | ≤ 1.5 mΩ |
| Outer Contact Resistance | ≤ 1 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.45 |
| Insertion Loss | ≤ 0.5 dB |
| Dimensions | 1.2 in x 0.6 in x 0.5 in |
| Part Number | BNC-FM |

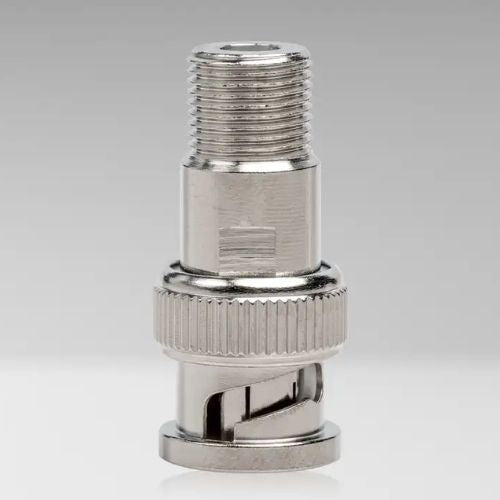

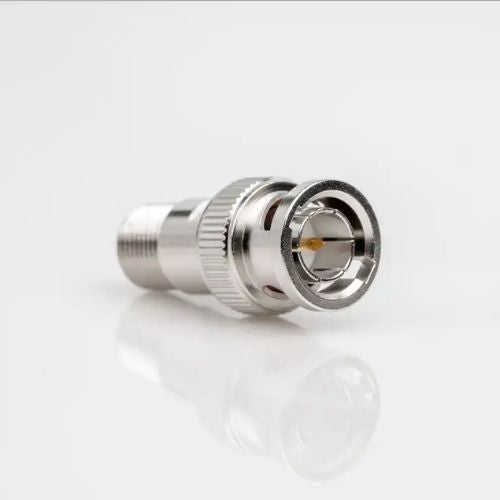

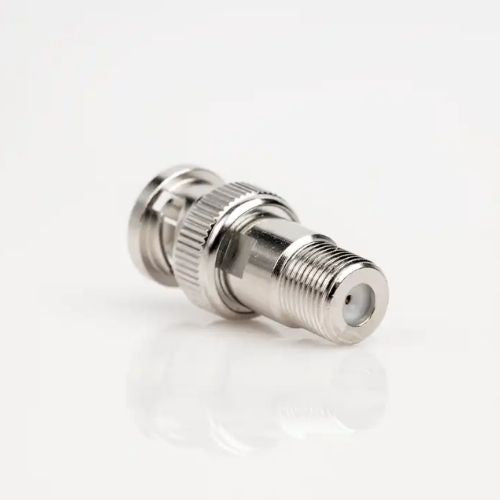

BNC Female to Male Adapter
Description:

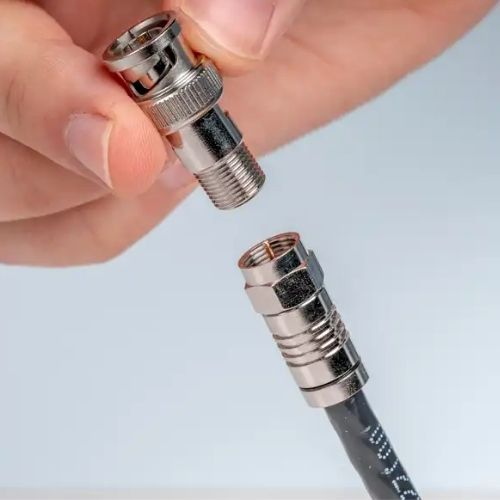

These adapters allow you to convert BNC connections to CATV F-type connections and are conveniently sold in a two-pack.
Features:
⦿ BNC-to-F Type Connector Adapters
⦿ Gold-Plated Contacts for Superior Signal Transmission
⦿ Supports Digital and Analog Signals
⦿ Professional-Grade Construction

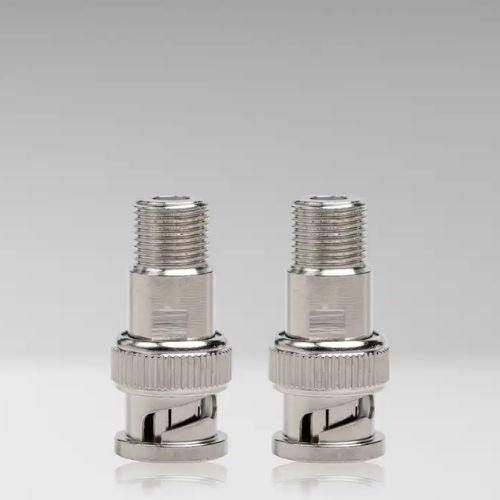

⦿ Includes Two (2) Adapters
